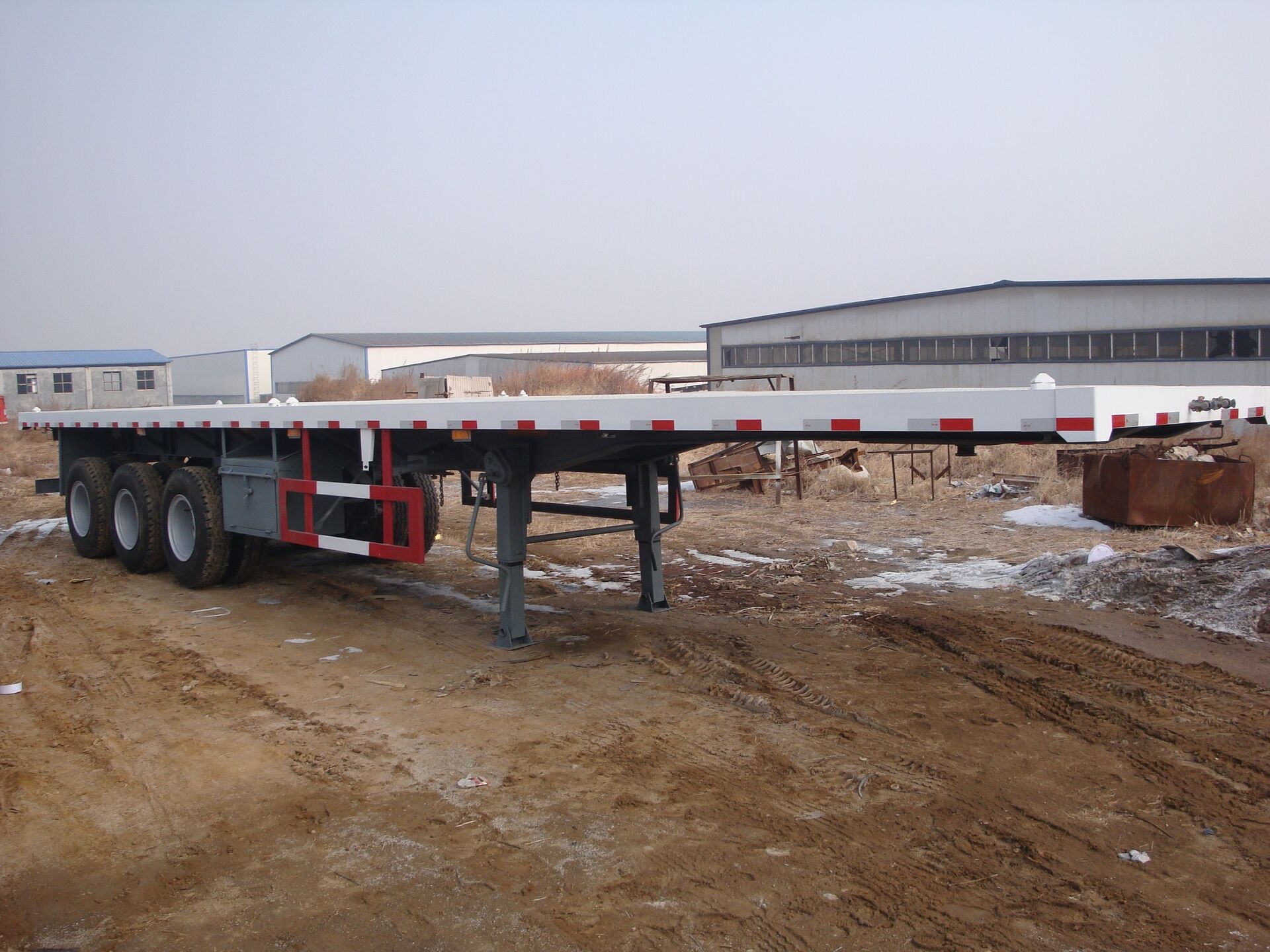

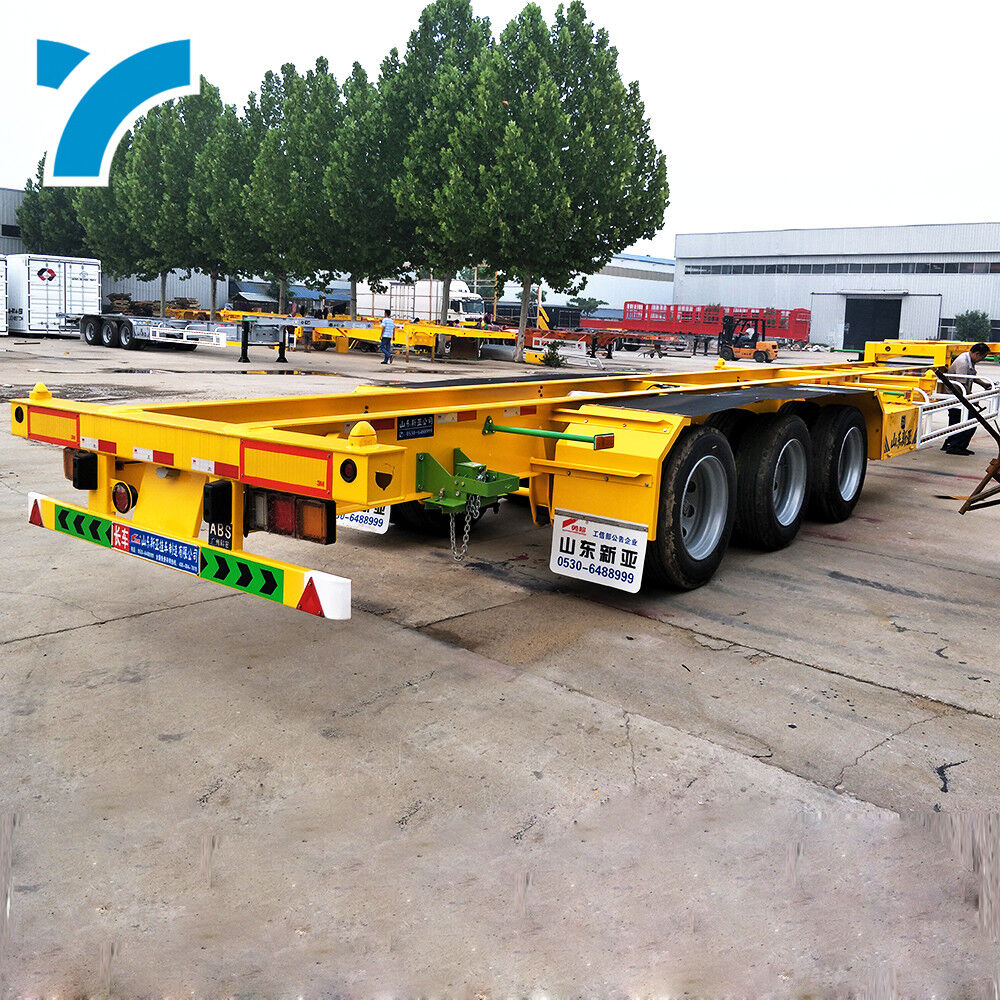

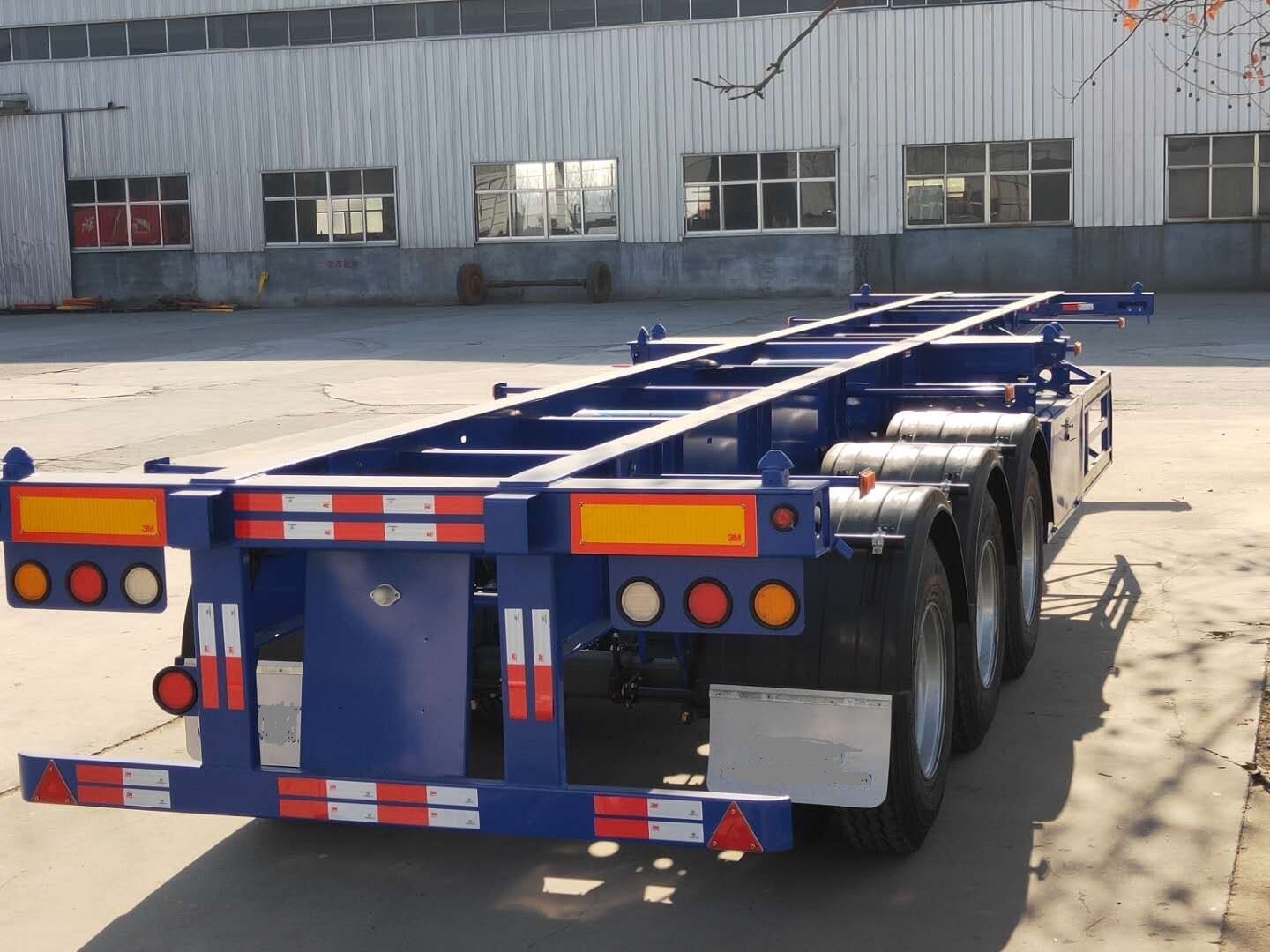

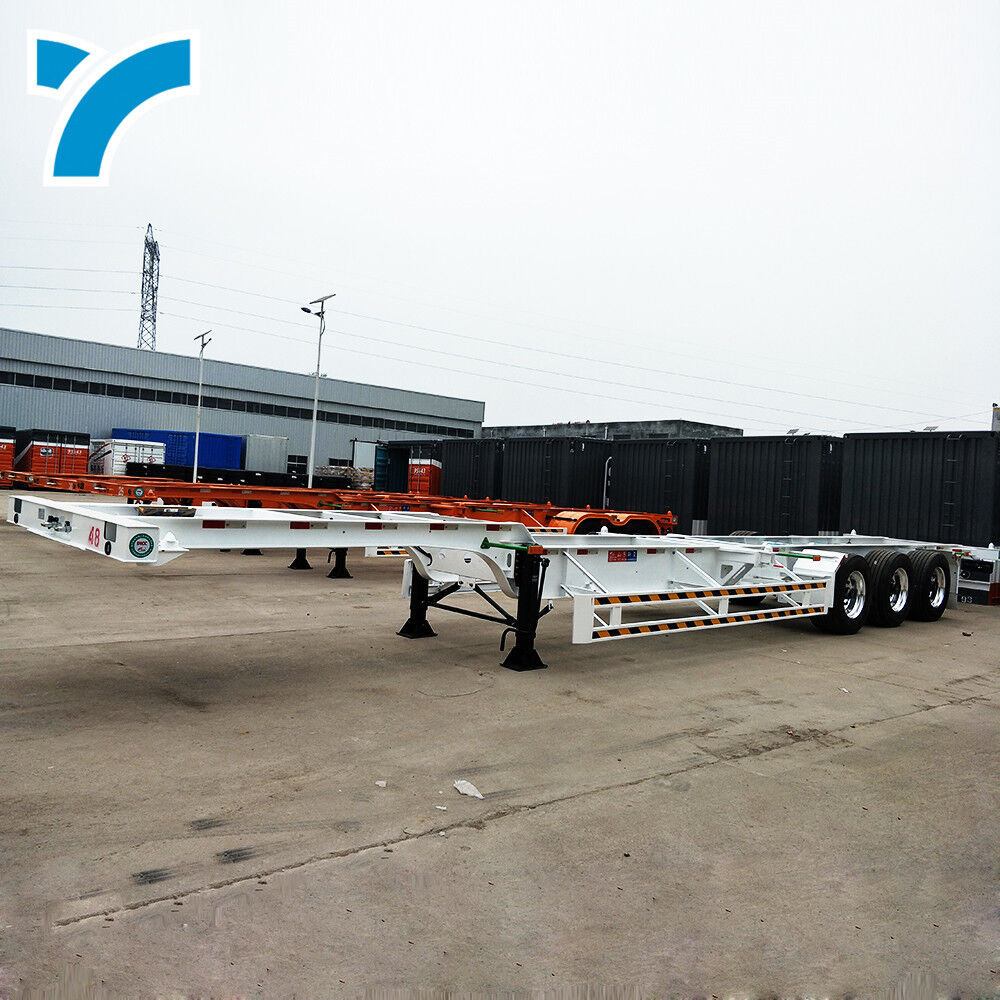

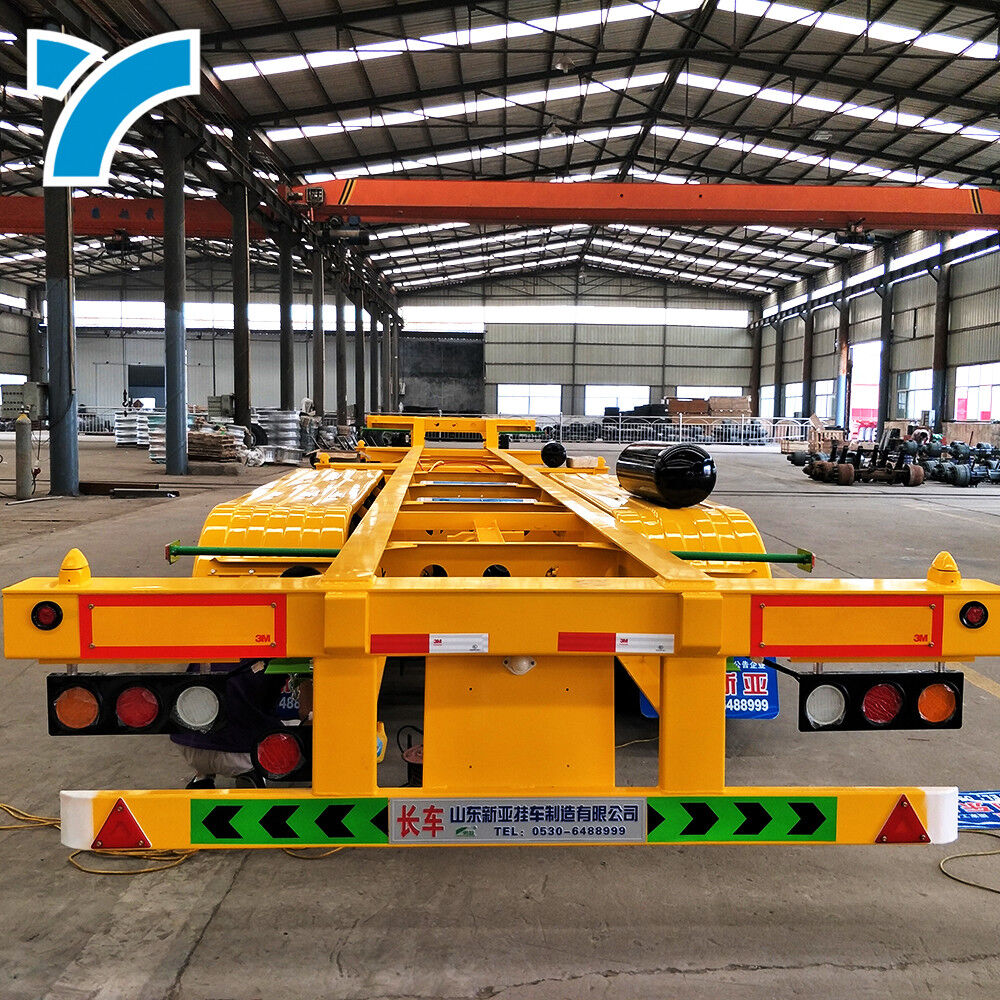

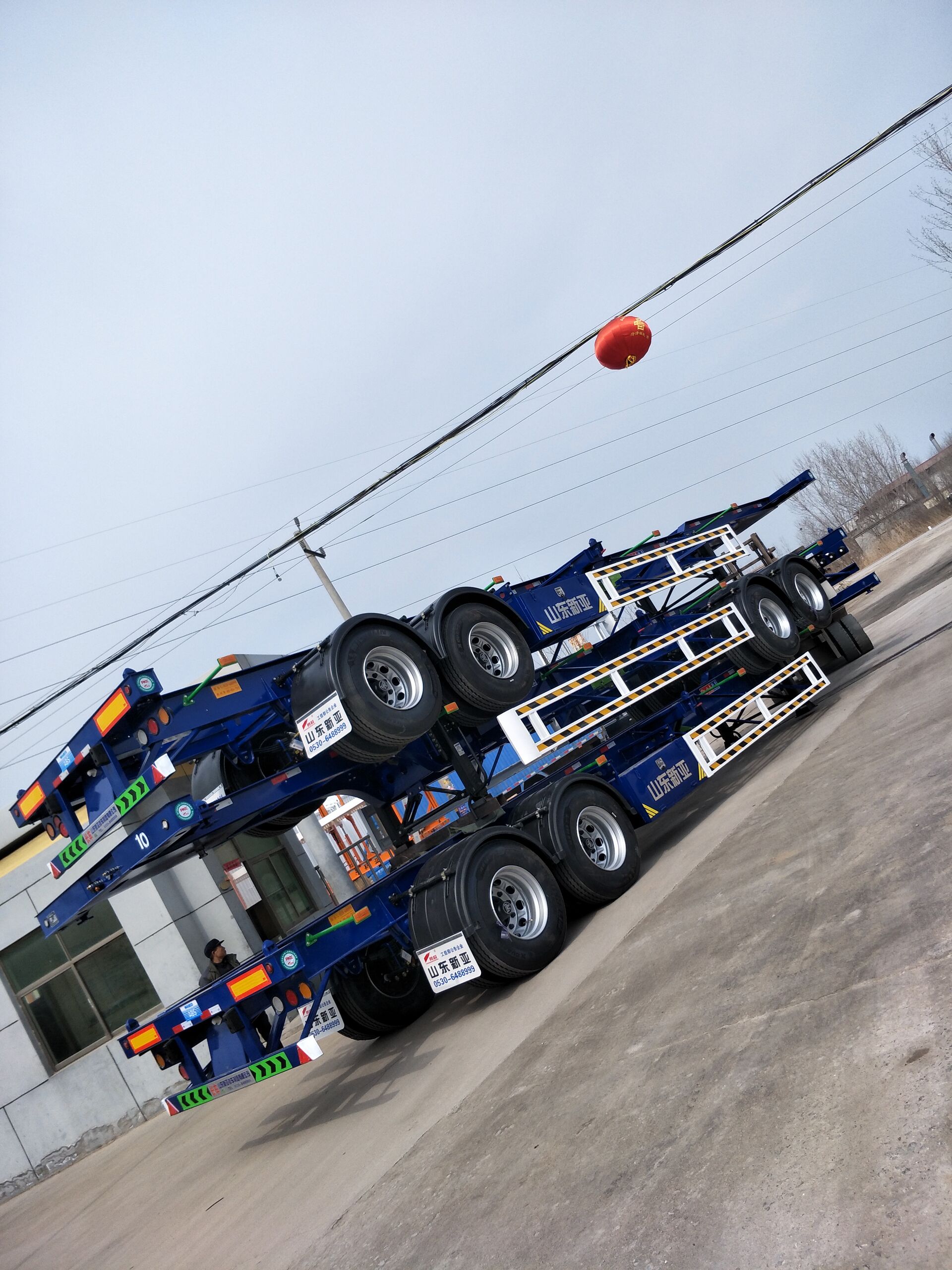

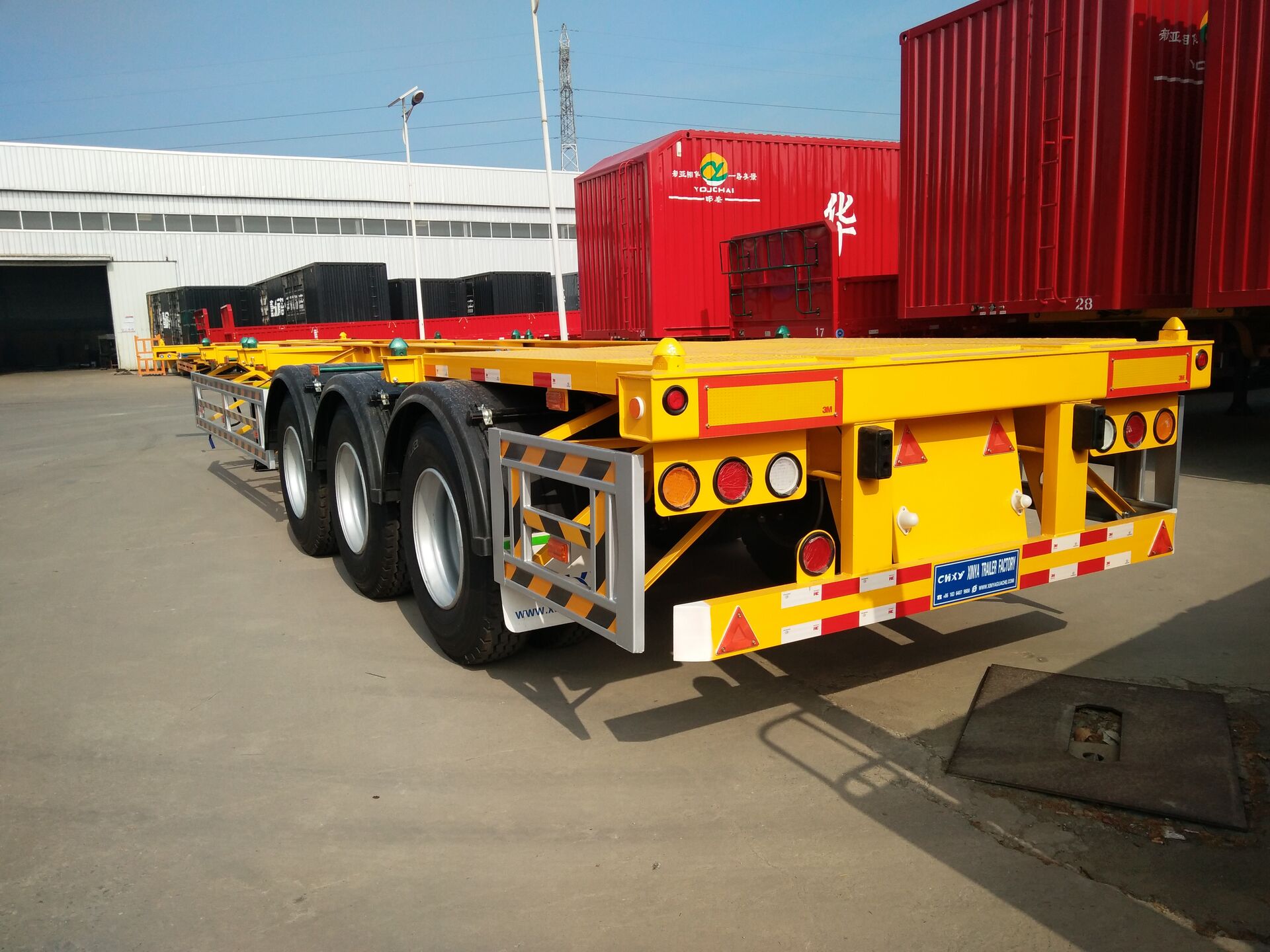

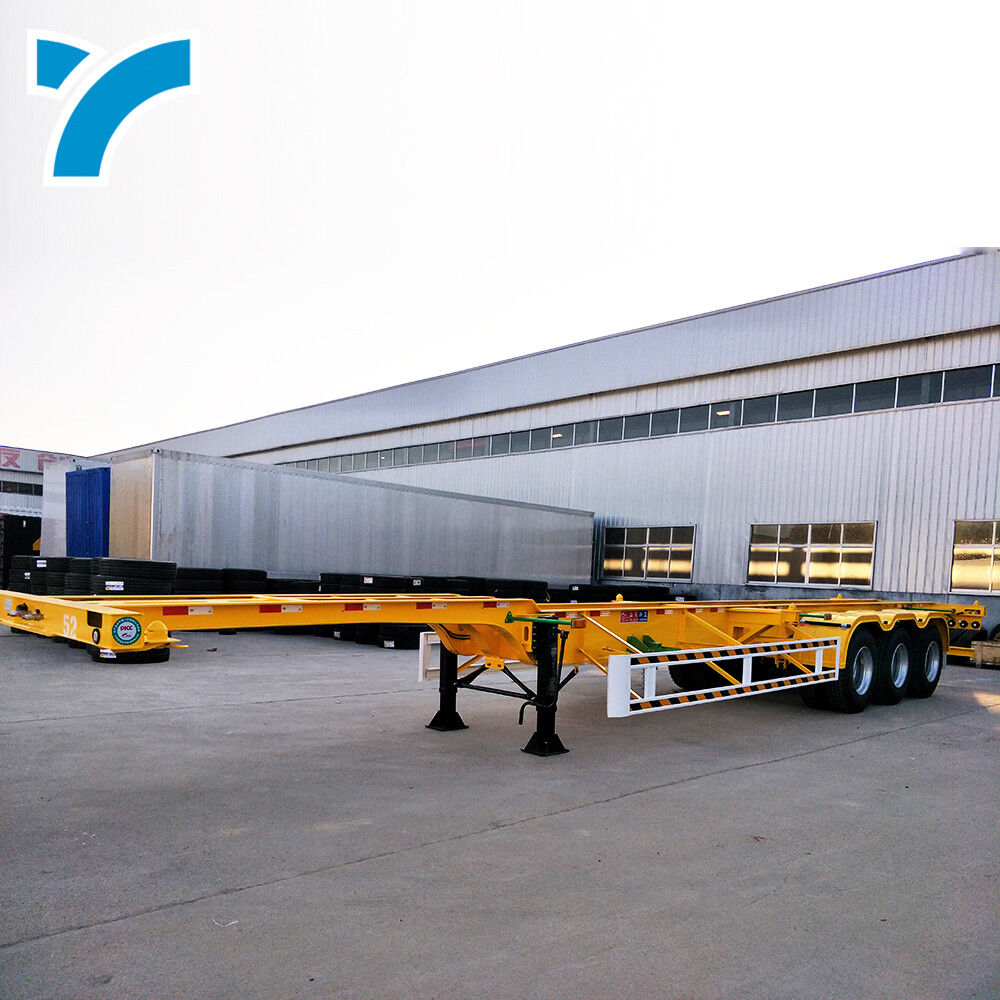

| 40FT Container Semi-trailer-40T |
| Item | 40FT Container Semi-trailer-40T |
| Tare Weight | 7000kg |
| Pay load | 40000kg |
| Overall dimension(mm) | 12500mm×2500mm×1620mm |
| Chassis Specification |
| Chassis frame | I beam,Q345B, high tensile steel |
| Capacity | Two 20ft containers or one 40ft container |
| Flat bed thickness | 3mm |
| Axles | FUWA brand 13 T /PER , 3 AXLES |
| Tire | 12R22.5,radial tubeless tyre, 12pieces |
| Spare tyre | One set tyre,including one carrier |
| Rim | 8.5 12pieces |
| Suspension | Germany design mechanical suspension |
| Spring leaf | 13 pieces |
| King pin | JOST 2" ` |
| Landing gear | JOST brand,two speed, manual |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank |
| Lock sets | 12 sets standard |
| Accessories | One piece tool box |
| Pianting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
