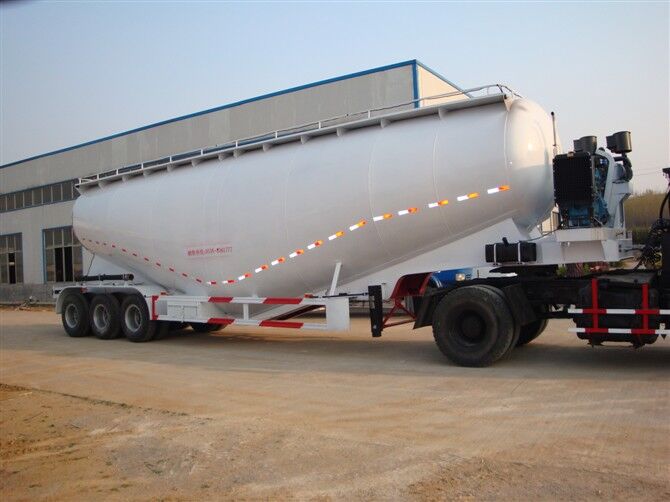

| Bulk Cement Semi-Traile-50CBM |
| Item | Bulk Cement Semi-Traile-50CBM |
| Tare Weight | 14500kg |
| Pay load | 55000kg |
| Overall dimension(mm) | 12700mm×2500mm×3900mm |
| Chassis Specification |
| Chassis frame | I beam,Q345B, high tensile steel |
| Axles | FUWA brand 16 T /PER , 3 AXLES |
| Tire | 12.00R20 12pieces |
| Spare tyre | One set tyre,including one carrier |
| Rim | 8.5 12pieces |
| Suspension | Germany design mechanical suspension |
| Spring leaf | 13 pieces |
| King pin | JOST 2" |
| Landing gear | JOST brand, two speed, manual |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank |
| Accessories | One piece tool box |
| Painting | Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint |
| Tank body |
| Capacity | 50m³with 2 components |
| Engine | Weichai diesel engine |
| Air compressor | 0.2Mpa |
| Inner fluidizid bed | Air bag |
| Manhole cover | 500mm manhole covers,2 pieces |
| Tank body material | Q235A/6mm steel sheet |
| End plate | Q235A/6mm ,ball shape |
| Discharge pipe | 4`` steel tube+hose |
