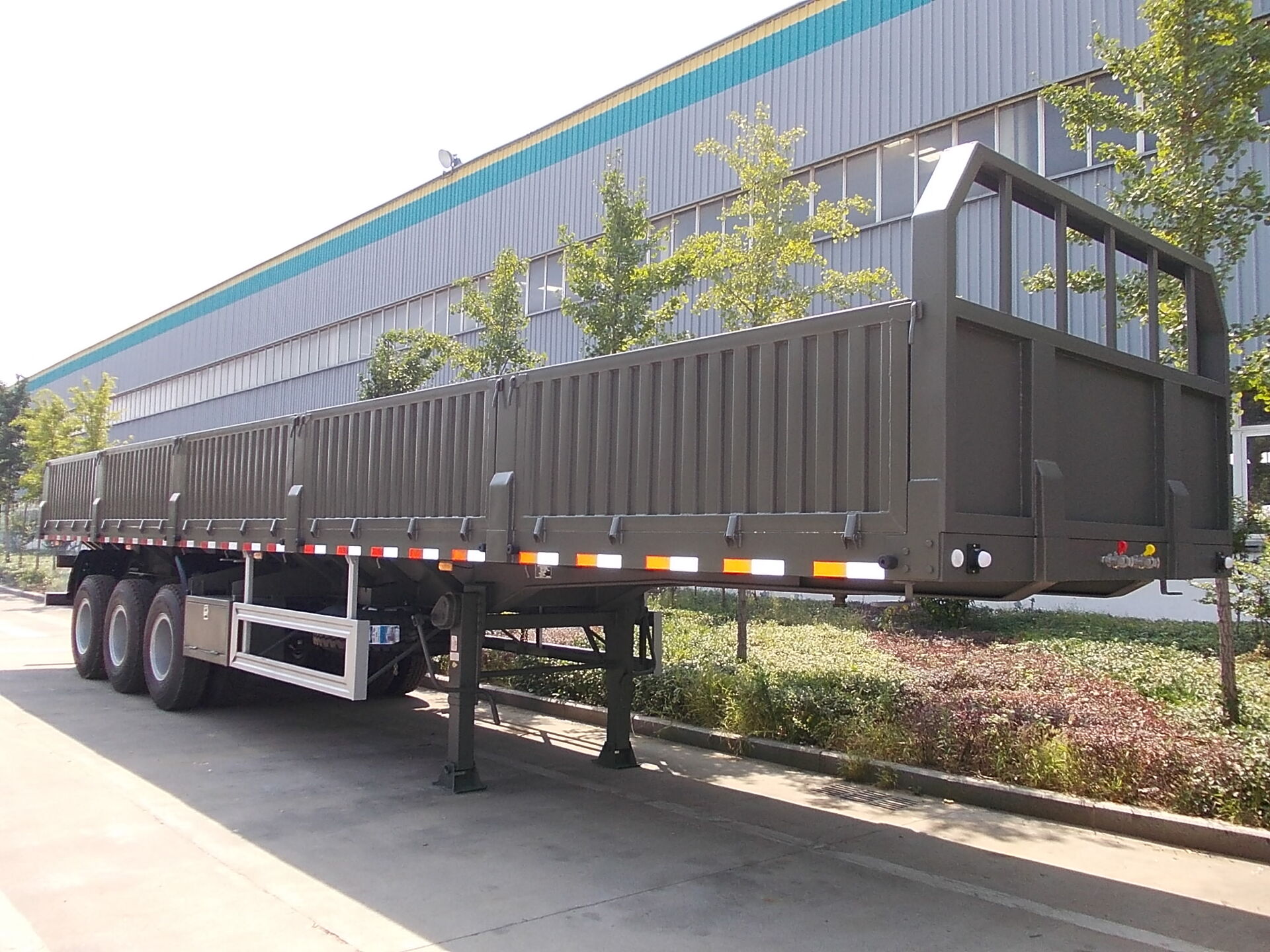

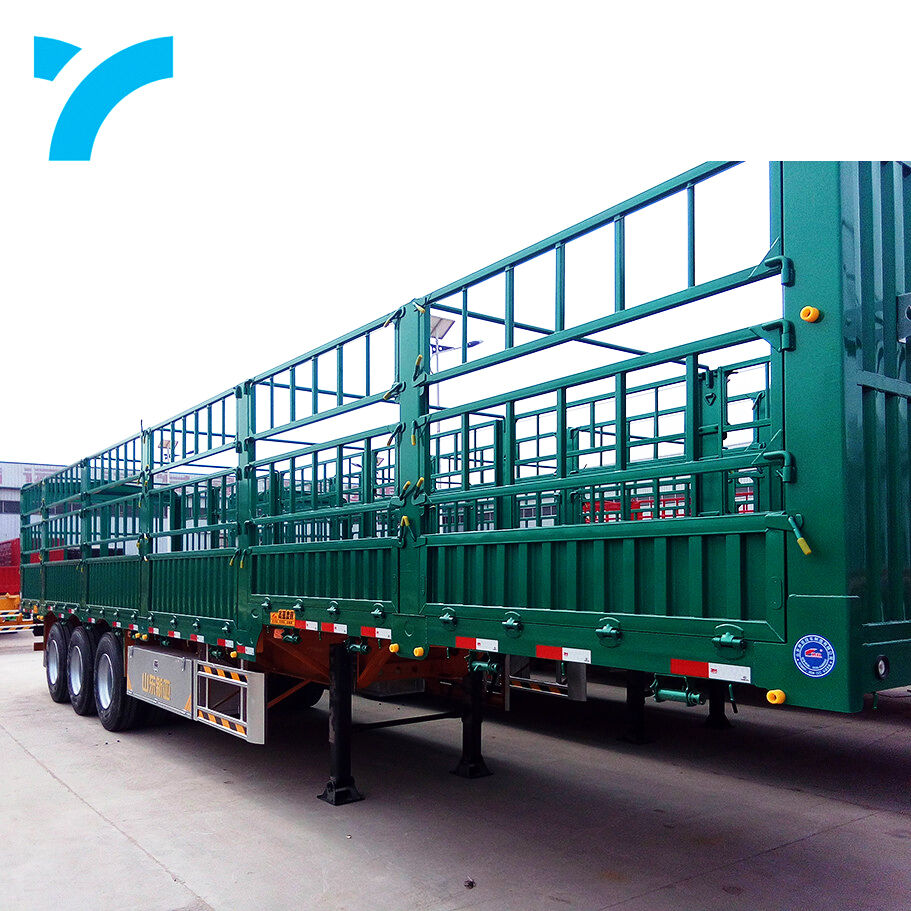

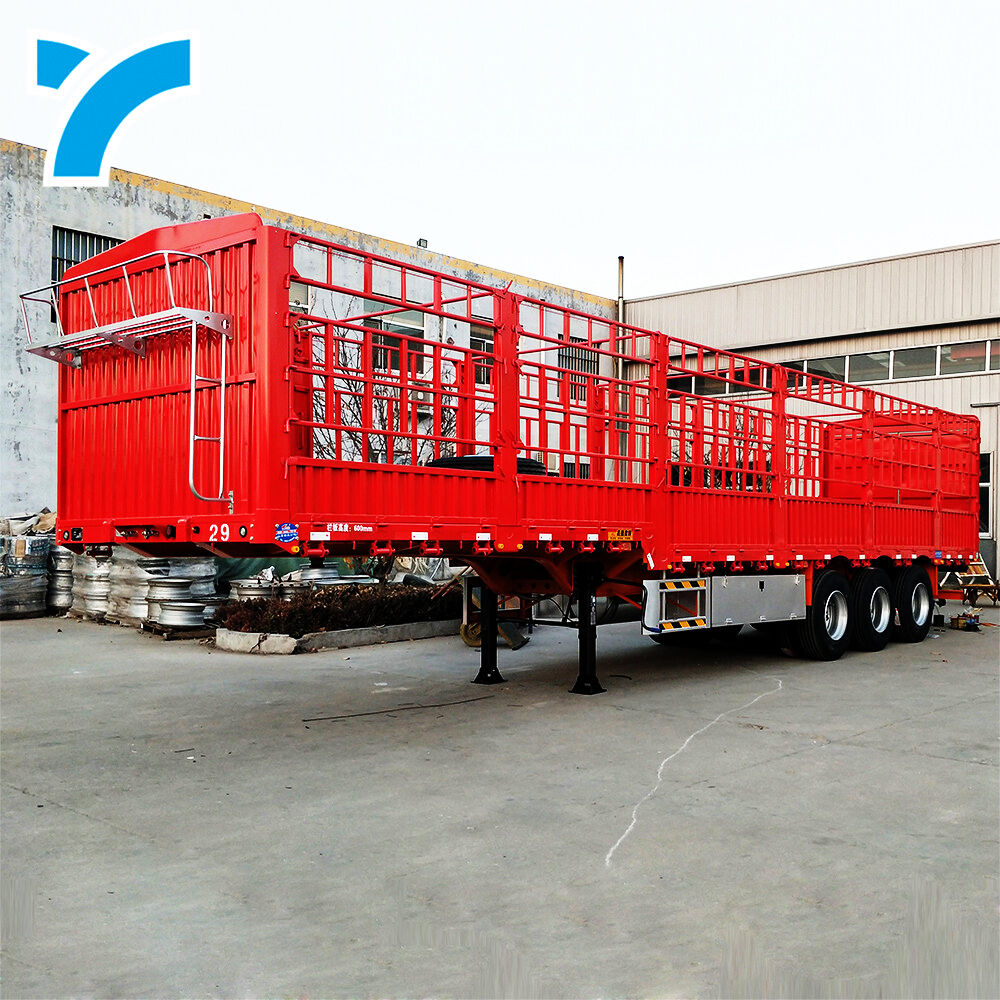

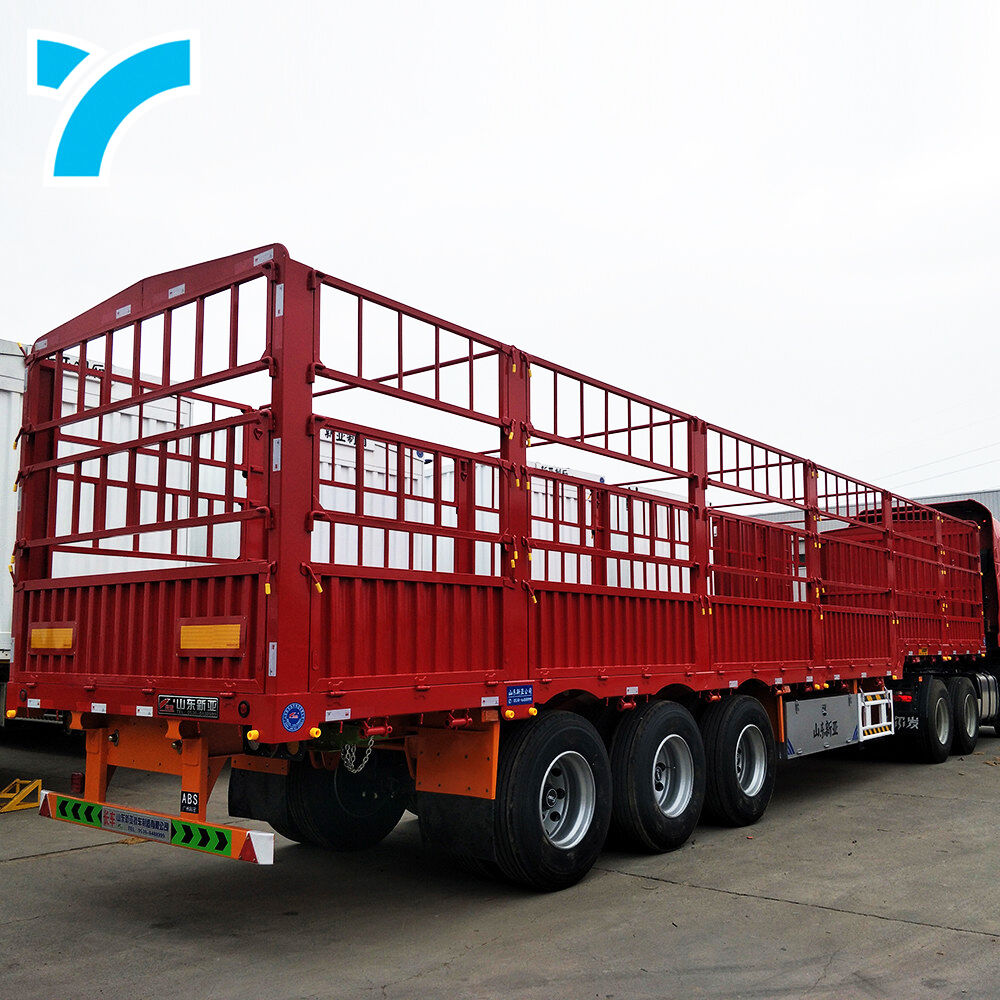

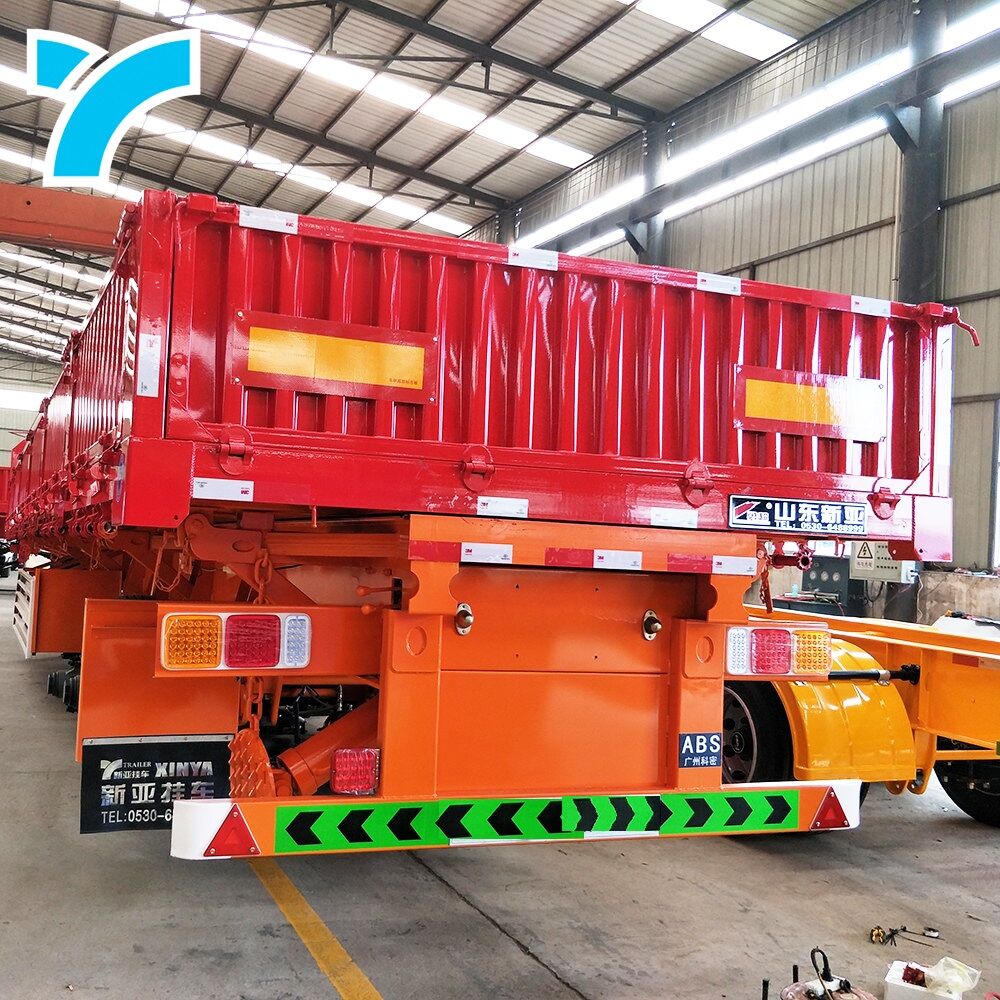

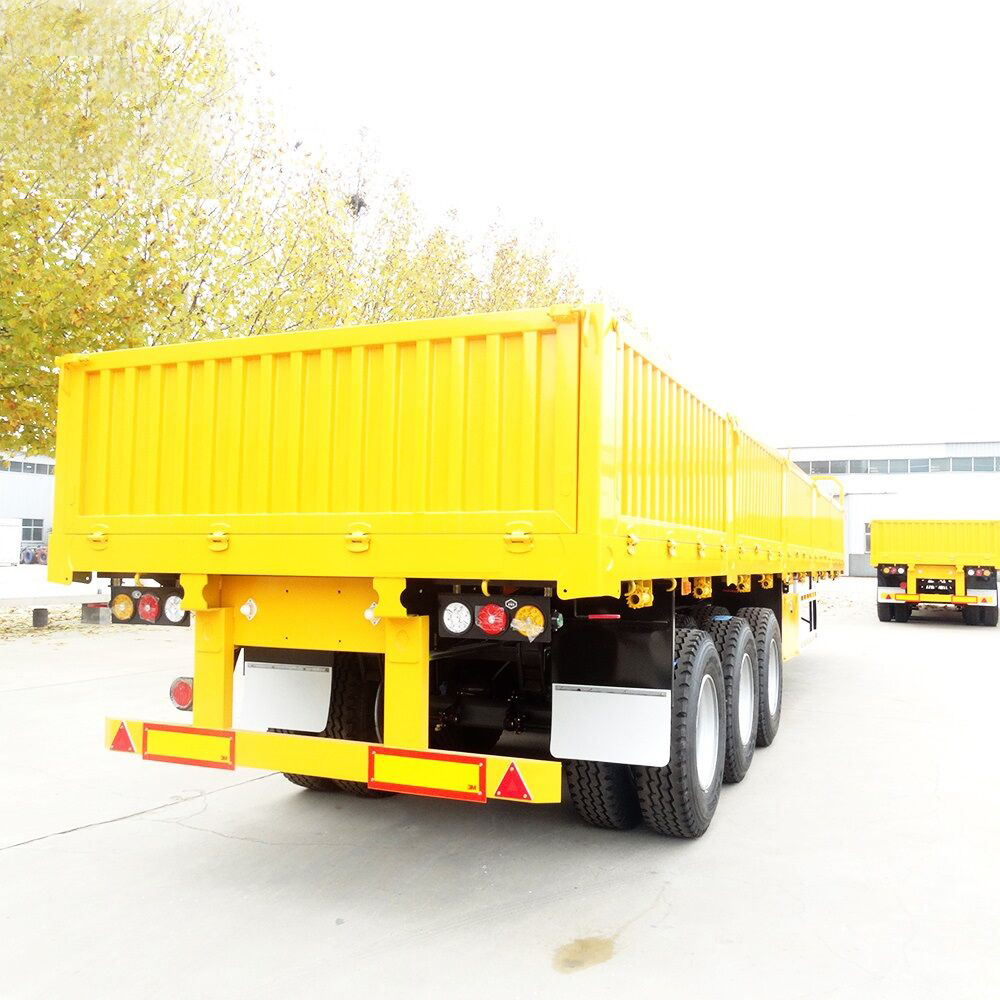

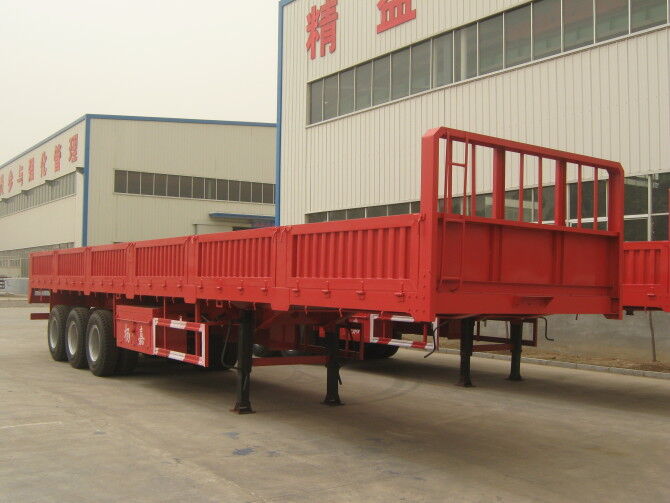

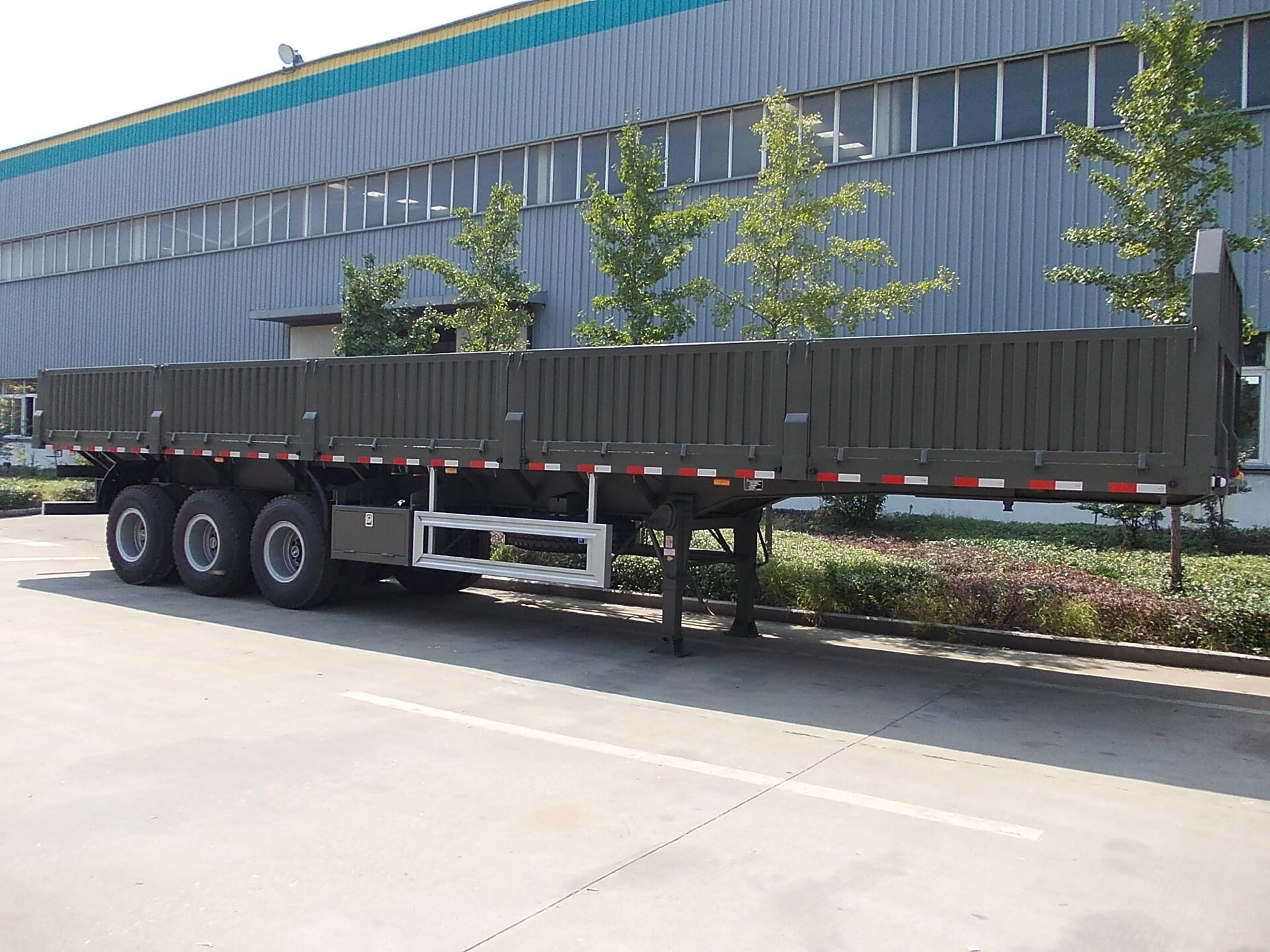

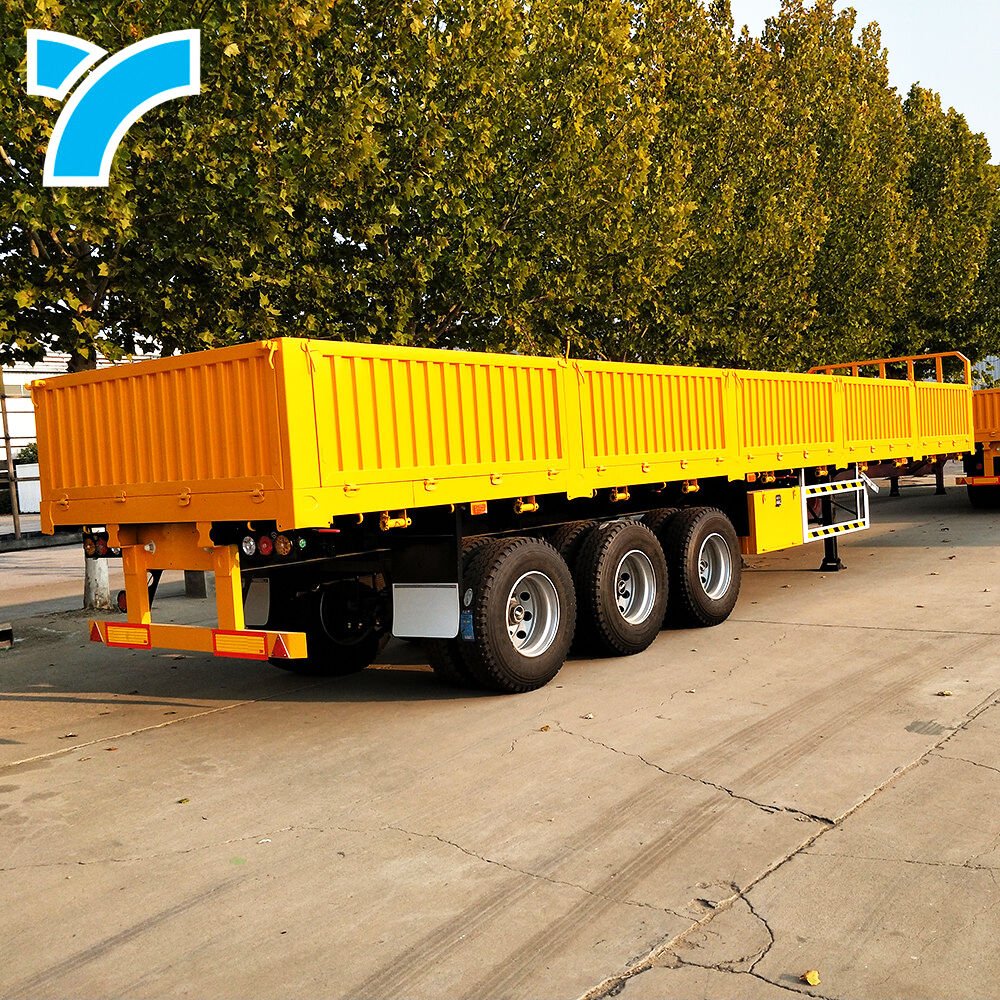

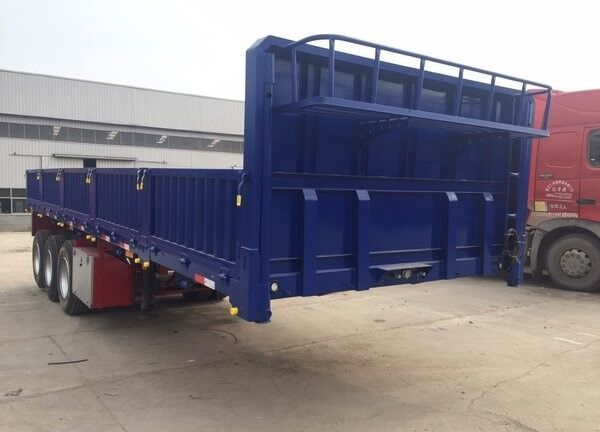

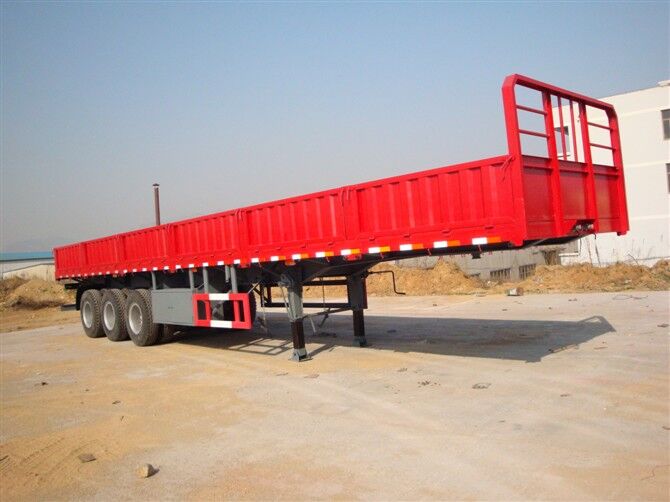

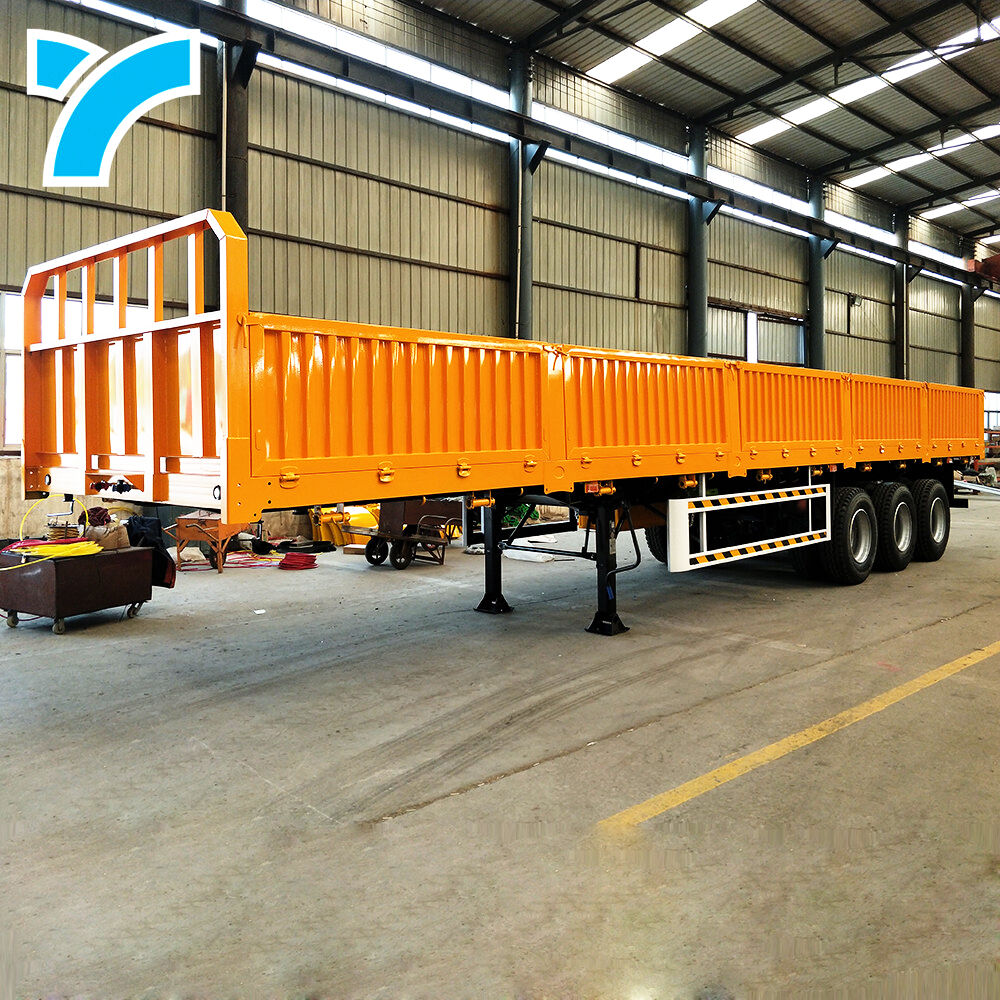

| 40FT Cargo Semi-trailer |
| Item | 40FT Cargo Semi-trailer-40T |
| Tare Weight | 7500kg |
| Pay load | 40000kg |
| Overall dimension(mm) | 12500mm×2500mm×3000mm |
| Chassis Specification |
|
| Chassis frame | I beam,Q345, high tensile steel |
| Sidewall | 600mm height,1.5mm thickness |
| Flat bed thickness | 3mm |
| Axles | FUWA brand 13 T /PER , 3 AXLES |
| Tire | 12R22.5,radial tubeless tyre, 12pieces |
| Spare tyre | One set tyre,including one carrier |
| Rim | 8.5 12pieces |
| Suspension | Germany design mechanical suspension |
| Spring leaf | 11 pieces |
| King pin | JOST 2" |
| Landing gear | JOST brand, two speed, manual |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank |
| Lock sets | 12 sets standard |
| Accessories | One piece tool box |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
