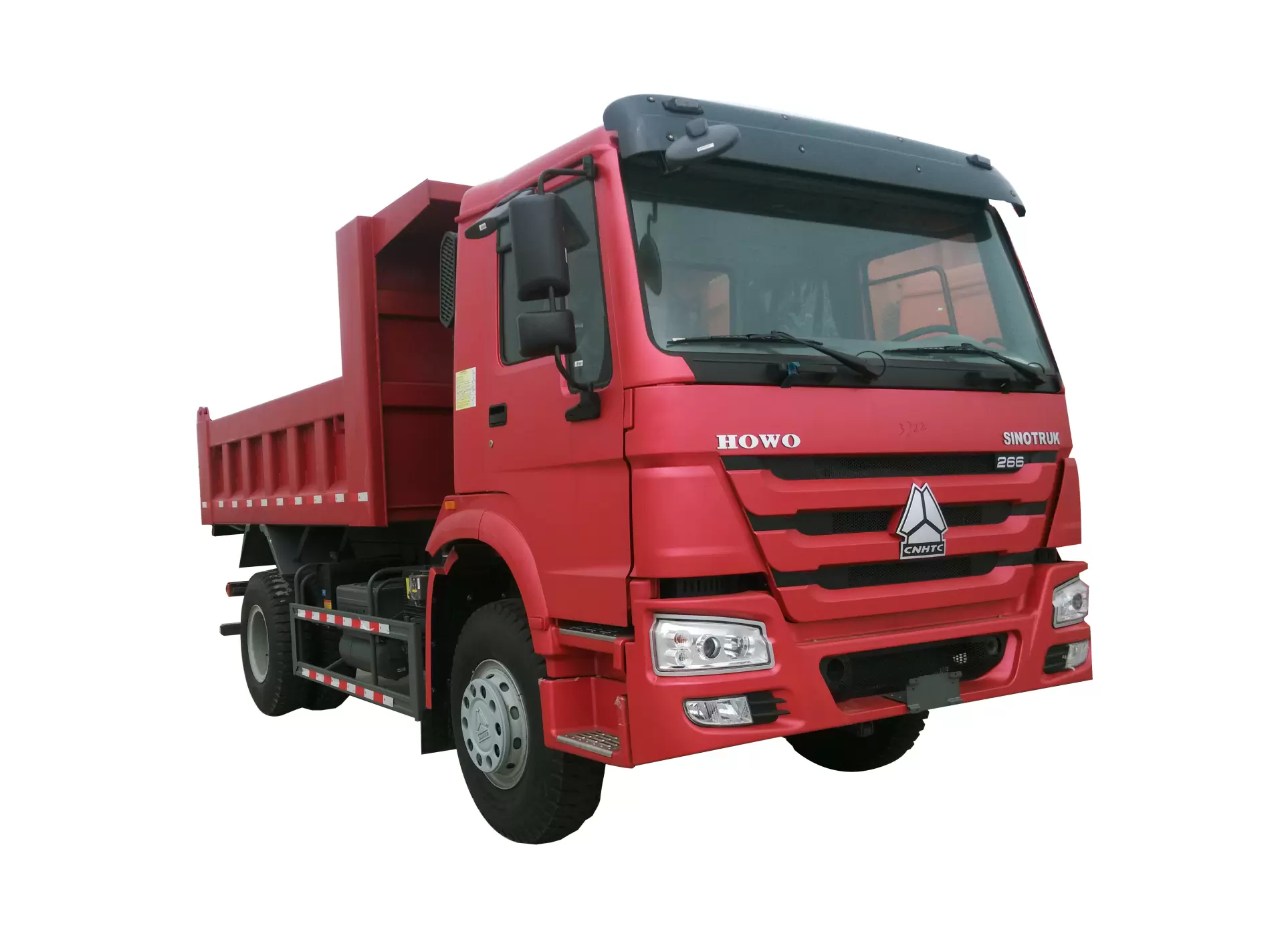

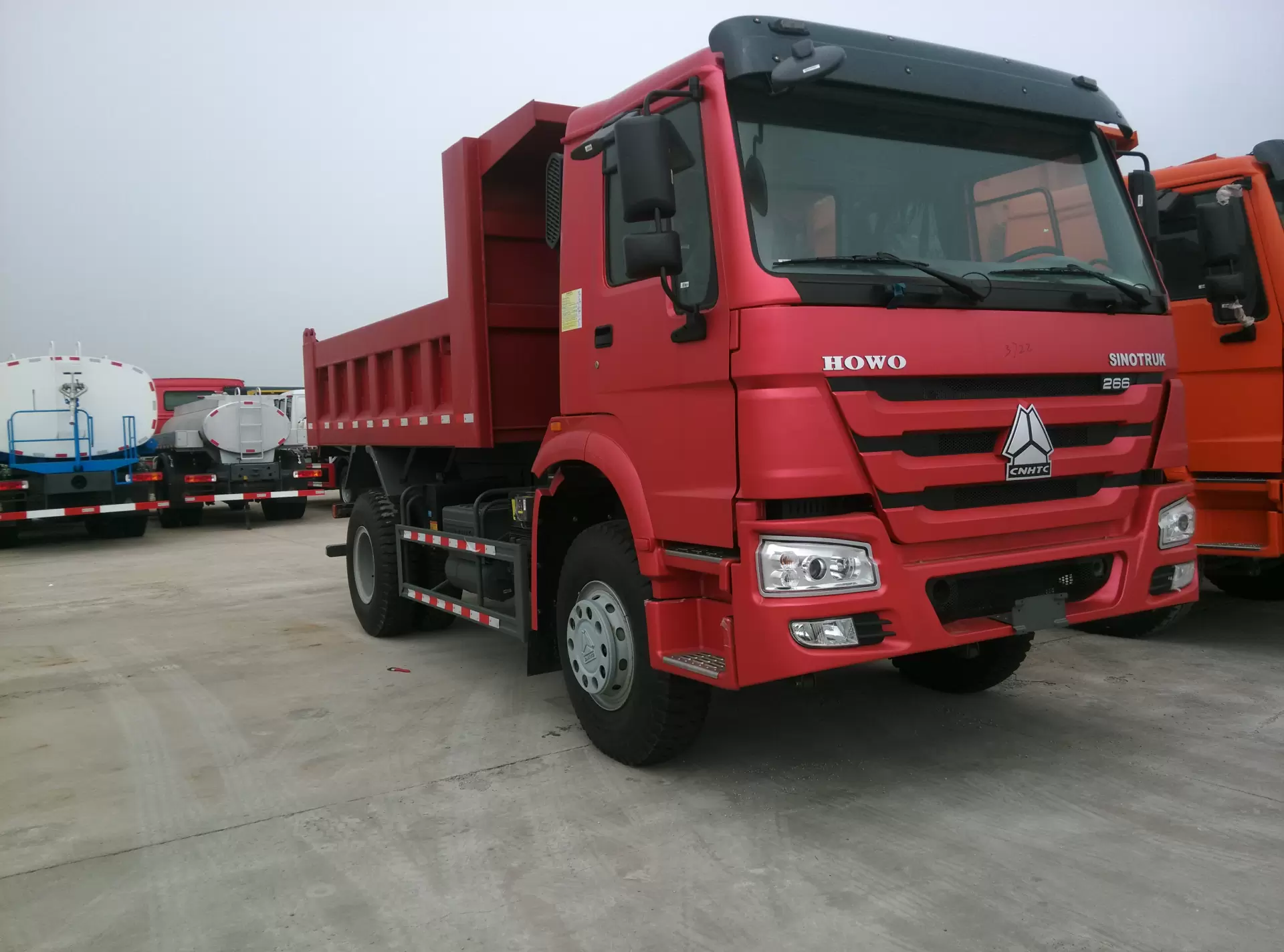

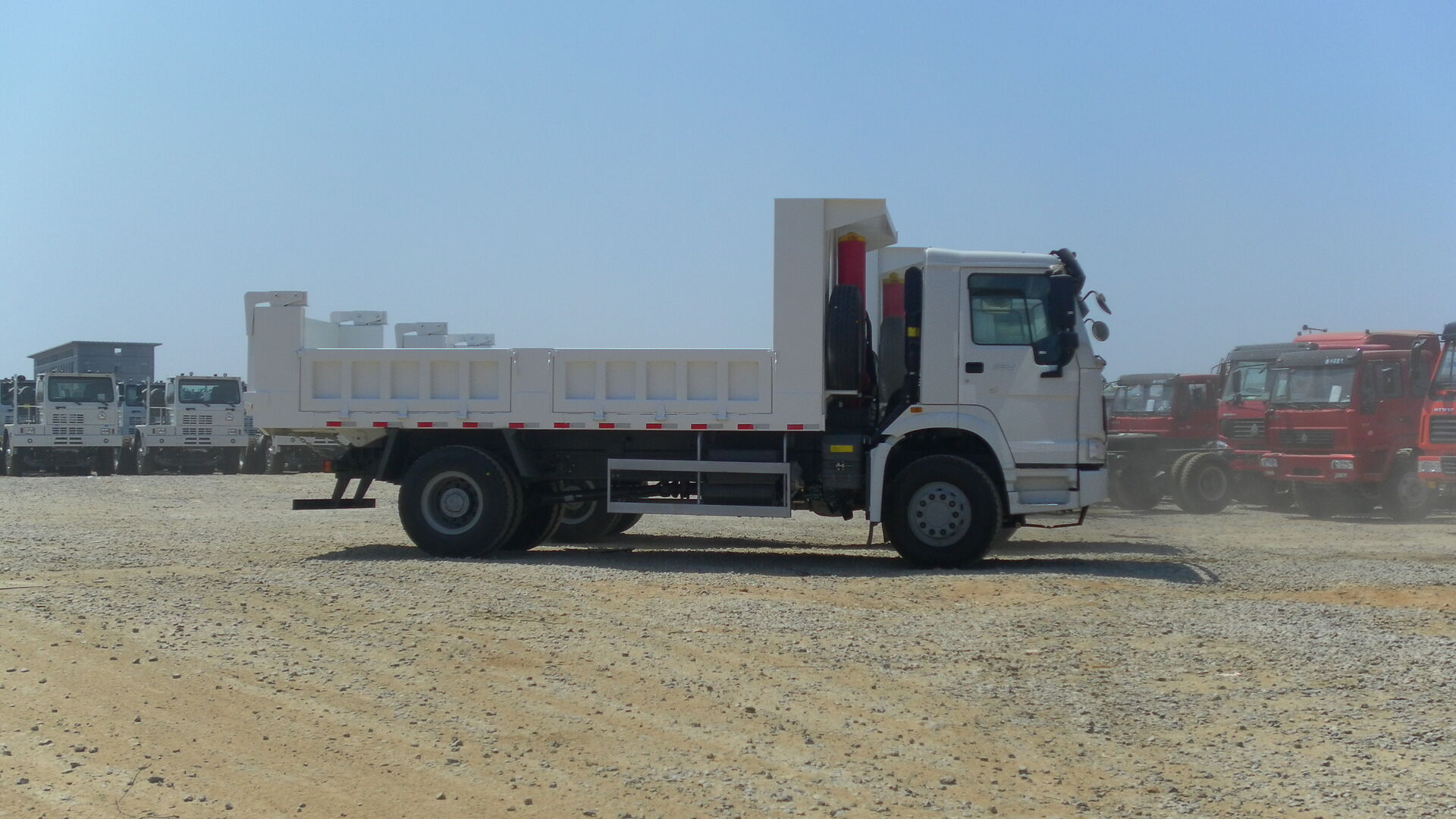

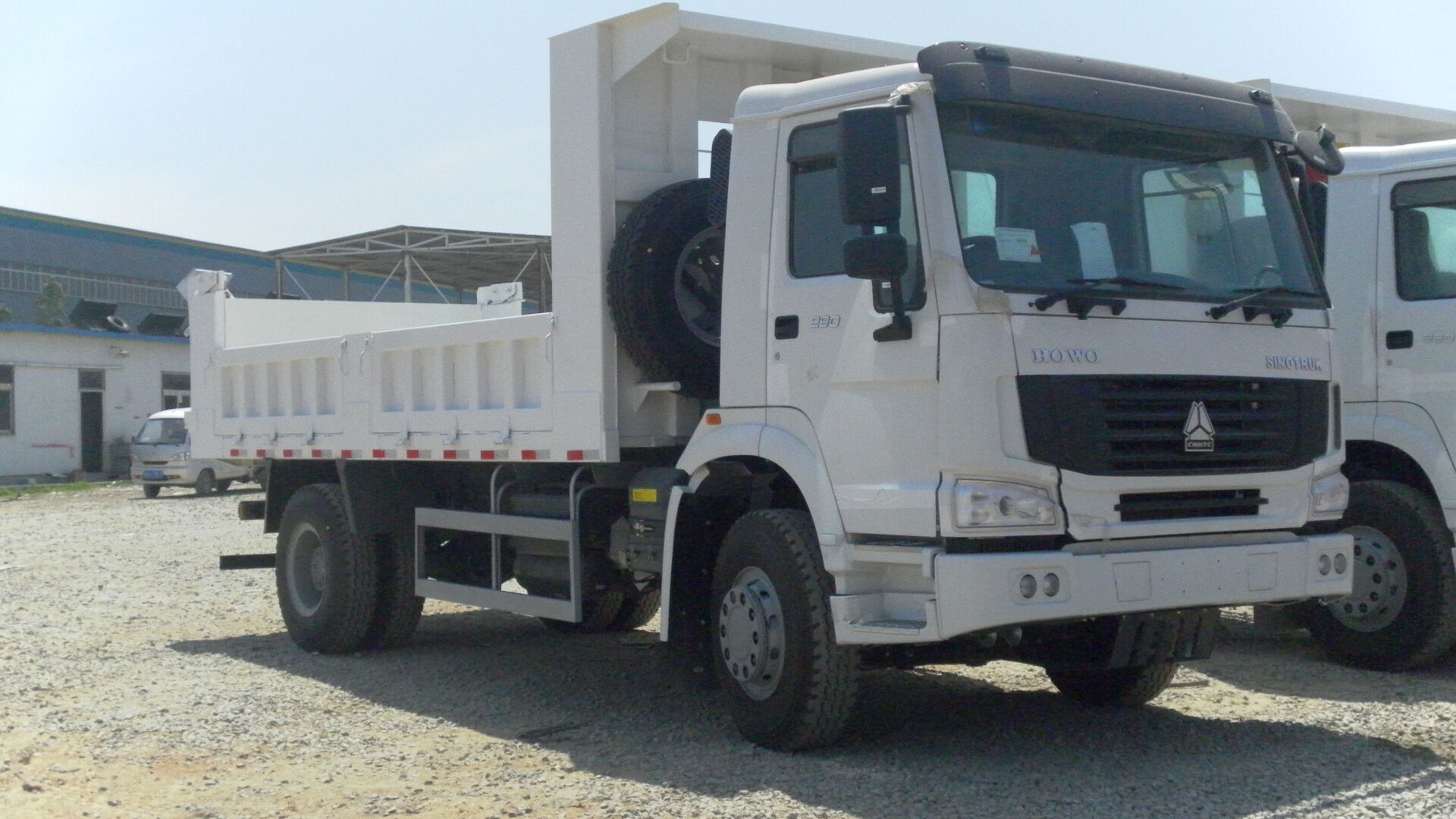

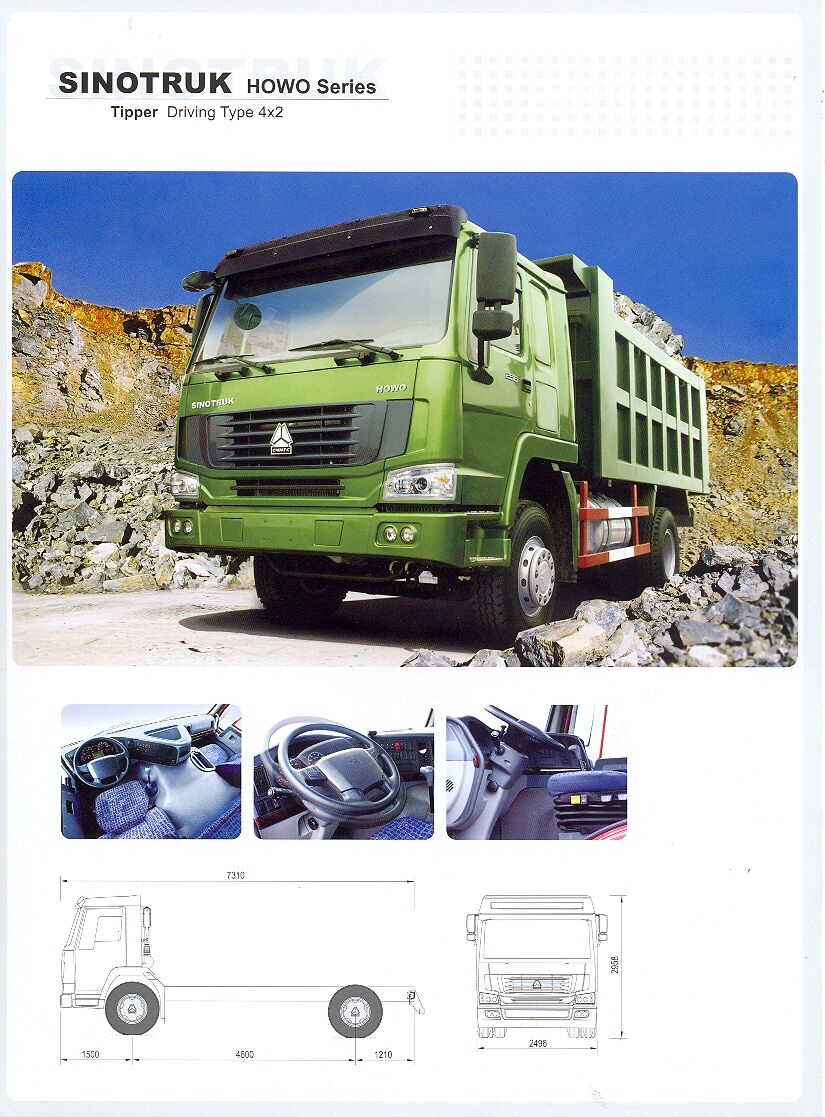

| 4x2 Howo Dump Truck | ||
| Key Performance | Driving speed(km/h)Loading CapacityFuel consumption(L/100km)290Hp/266Hp engine for optionalWith one berth. | 75KM/h, 85KM/h for optional.11,000kg26 |

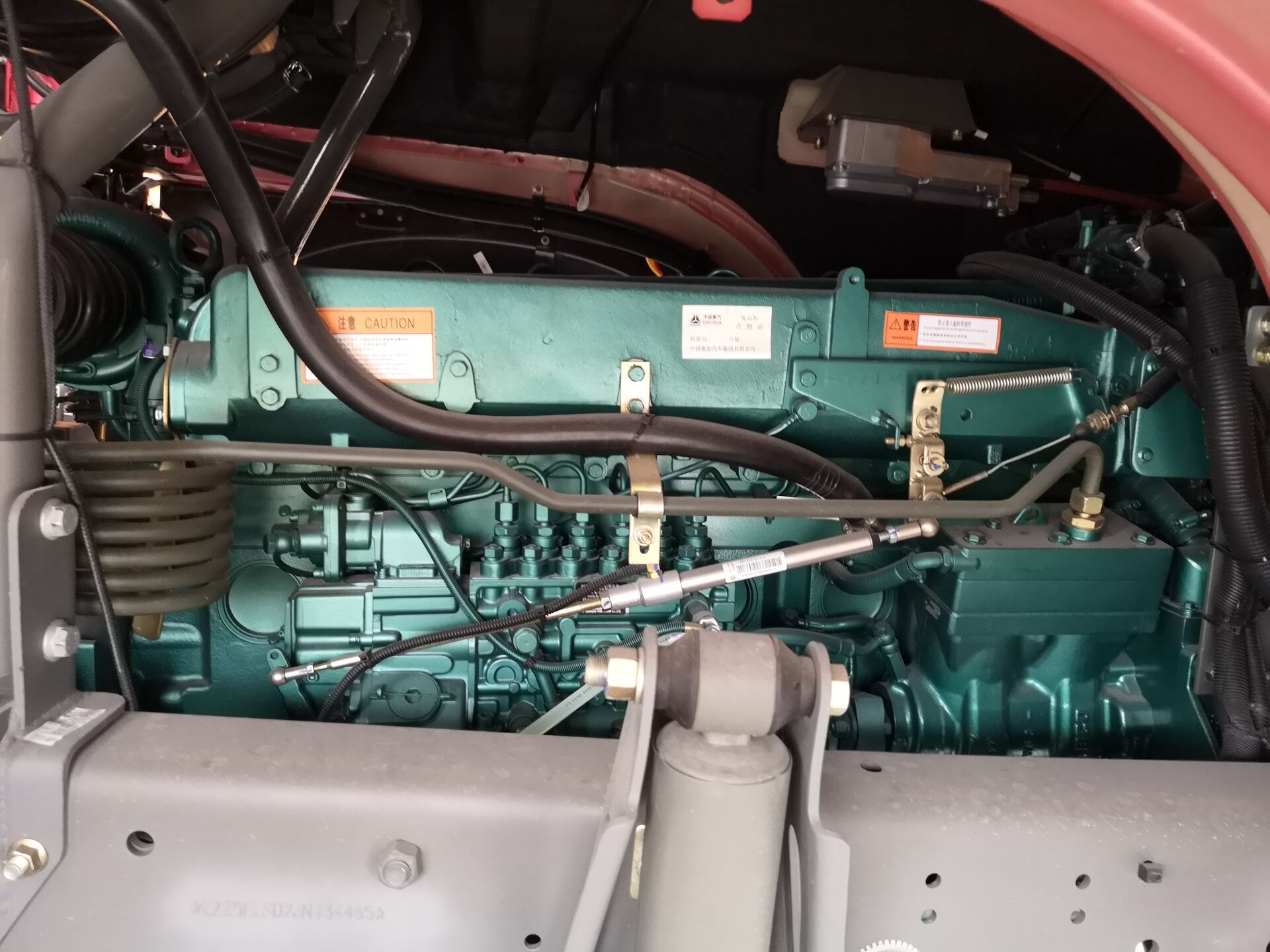

| Engine | Make: SINOTRUKEngine model: WD615.87, Euro II emission standard.4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 290hp(213Kw) at 2200 rpm according to DIN.Option: 266hpMaximum torque: 1160Nm at 1100~1600 rpmBore: 126mm;Stroke: 130mm;Displacement: 9.726L;Compression ratio: 17:1Specific fuel consumption: 198g/kWh;Engine oil filling quantity: 19LCooling system filling quantity (long-term filling): 40LThermostat opening temperature: 71oCRigid fan | |
| Clutch | 430mm diaphragm spring clutch, hydraulic control with air assistance.WD615.62、WD615.87 engine standard is 430C model. | |
| Transmission | SINOTRUK HW series, model HW19710,10 gears transmission, transmission with main and auxiliary transmission structure. Main transmission with double counter shaft, auxiliary transmission with planetary reduction, with PTO.Ratio:14.284,10.623,7.871,5.876,4.3753.265,2.428,1.799,1.343,1; 13.813(R),3,18(R) | |
| Front Axle | HR9, 9 ton. Steering with double T-cross section. Disc Brake.Option: drum brake. | |
| Rear Axles | AC16,16ton. Double Reduction(central reduction+wheel reduction).Differential locks between wheels and axlesRatio: 5.45 option:4.77Option: HC16, ration4.42, 4.8,5.73 | |

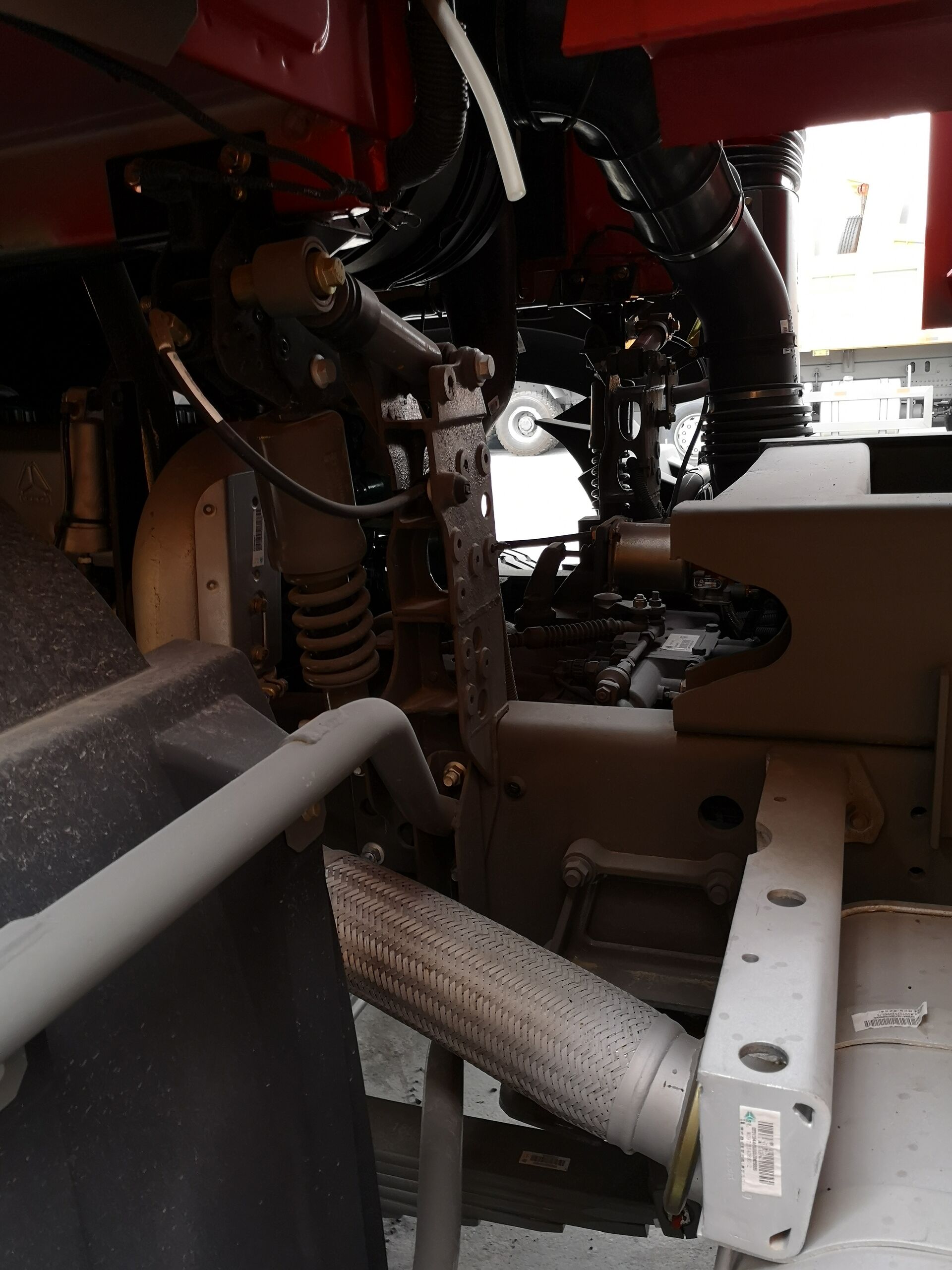

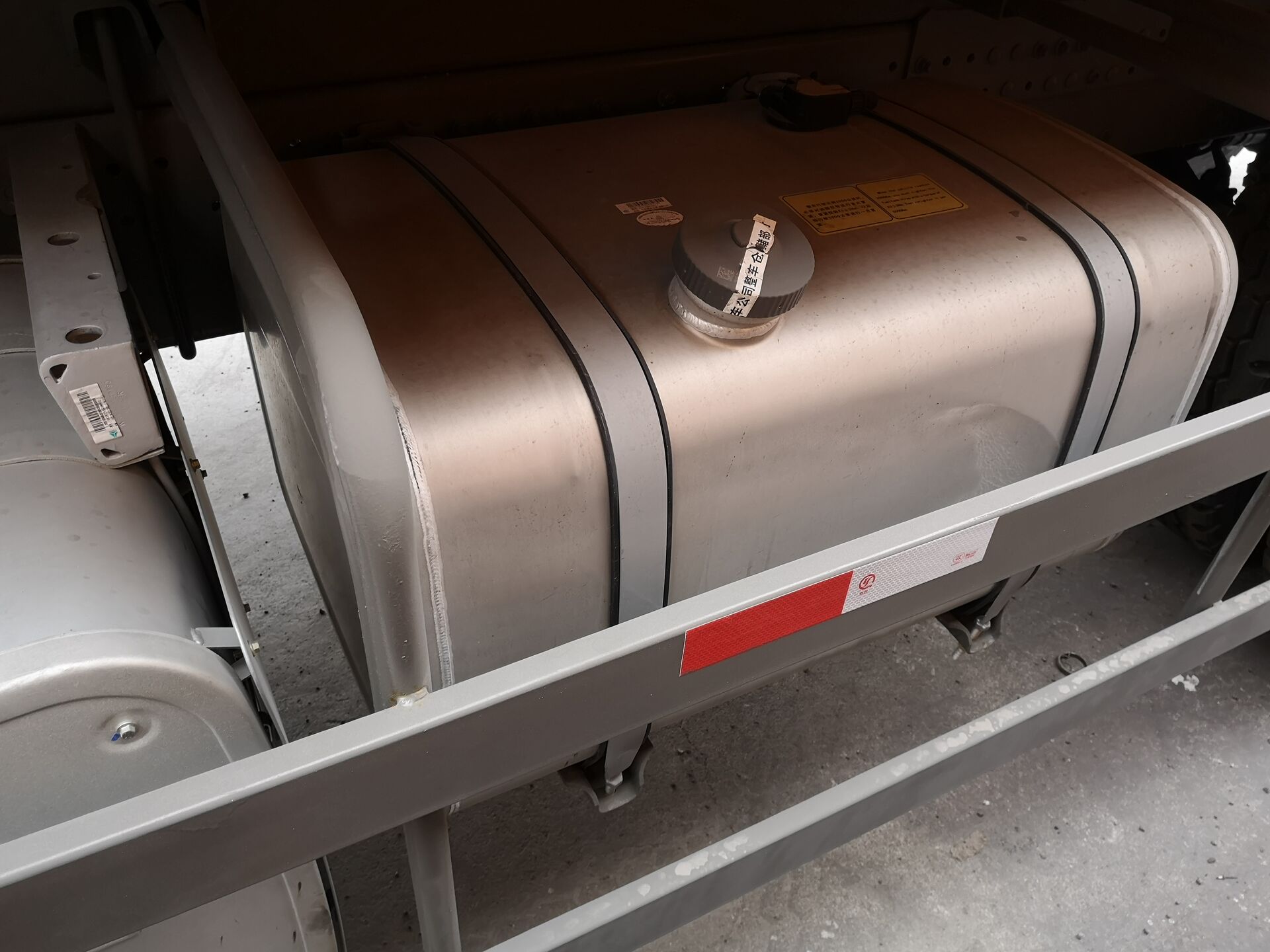

| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mmFront suspension: Leaf spring suspension,10pcs,with shock absorber, transverse stabilizer.Rear suspension: Leaf spring suspension,12pcs,disconnected type with transverse stabilizerSpare wheel carrier: with one spare wheelFuel tank: with 300 L fuel tank with locking fuel cap | |
| Steering | ZF8118 (Left hand drive) , hydraulic steering with power assistance.System pressure 18MPA.Option:26.2 | |
| Brakes | Service brake: dual circuit compressed air brakeParking Brake: (emergency brake): spring storage energy without air.Auxiliary brake: Engine exhausts braking.Standard engine EVB.With ABS and optional auto clearance adjusting arm. | |

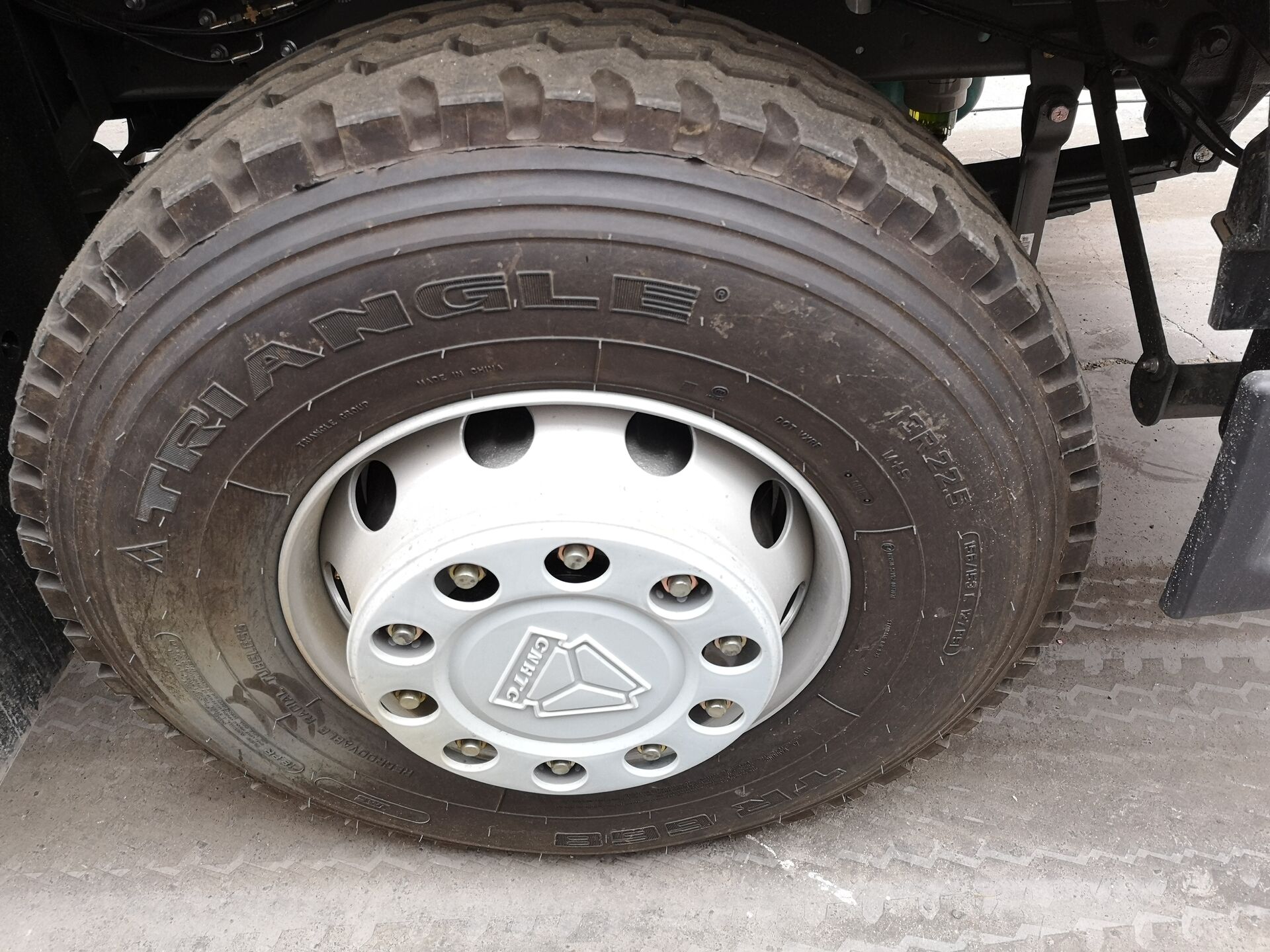

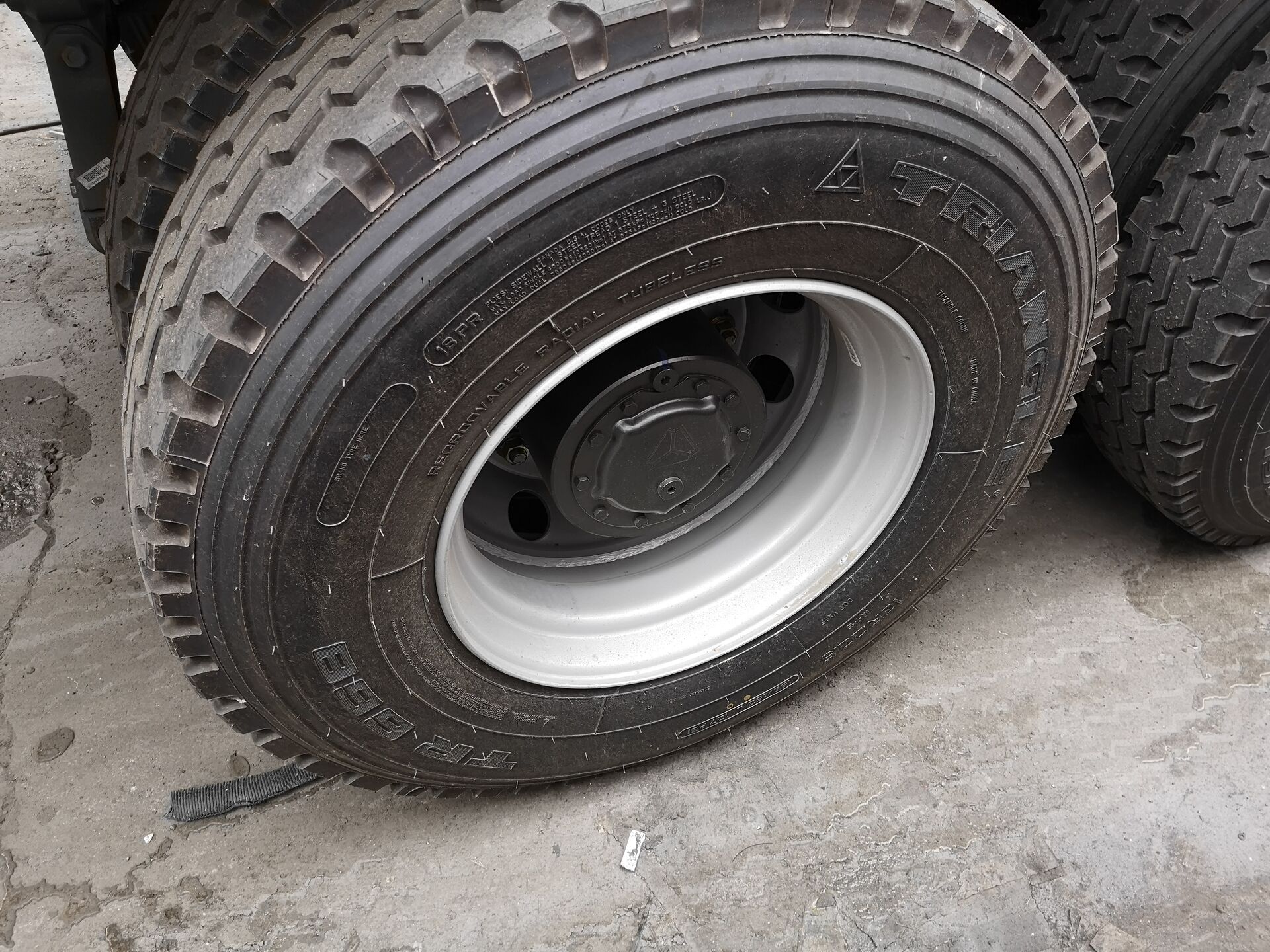

| Wheel & Types | Rims: 8.0-20, 10 hole-steelTypes 12R20Option: 12.00-20 tube 12R22.5 etc | |

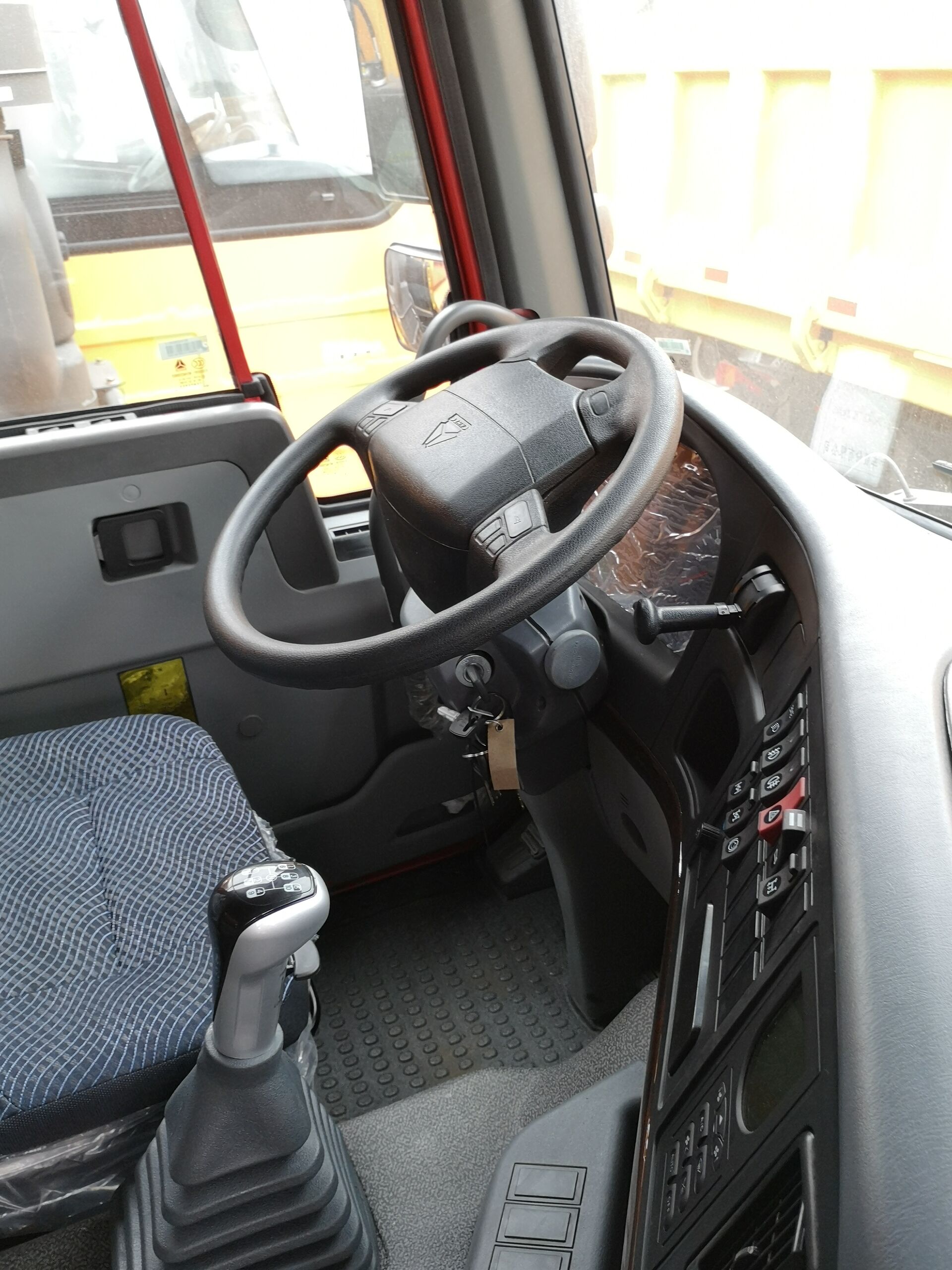

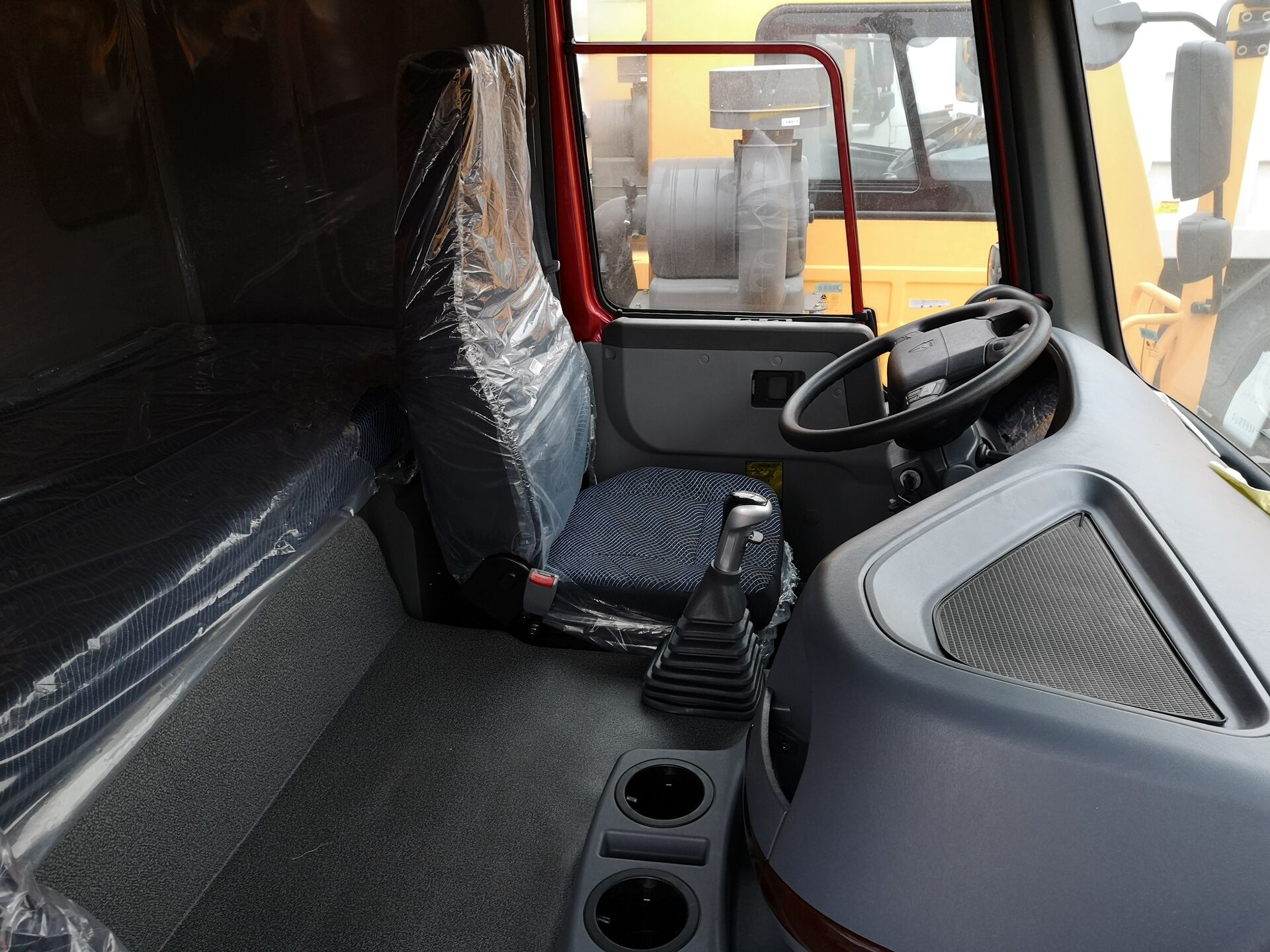

| Driver’s cab | Standard cab, all steel forward control, 55o hydraulically tillable to the front;2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial.Hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system.Adjustable roof flap, with stereo radio/cassette recorder, sun visor.And adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber.VDO instrument and control module, double-locking safety belt. | |
| Electrics | Operating voltage:24V, negative grounded;Starter: 24V, 7.5KWAlternator: 28V, 1500W;Batteries: 2×12, 165AhCigar-lighter, horn, headlamp, fog light, reverse lamp | |
| Dimensions in mm | Wheel baseFront wheel trackRear wheel trackFront overhangRear overhangApproach angle(o)Departure angle(o)Overall DimensionCargo body size | 3800202218301500168019276980×2496×3150(mm)4190×2300×800 (mm)Different carriage size for option |
| Weight in kg | Permissible loading capacity on chassisDead weightGross vehicle weightFront axle loading capacityRear axle loading capacity | 11000795019000650013000 |
