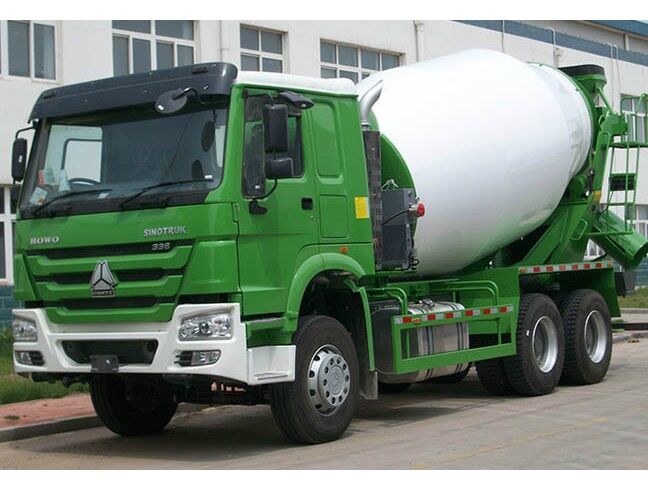

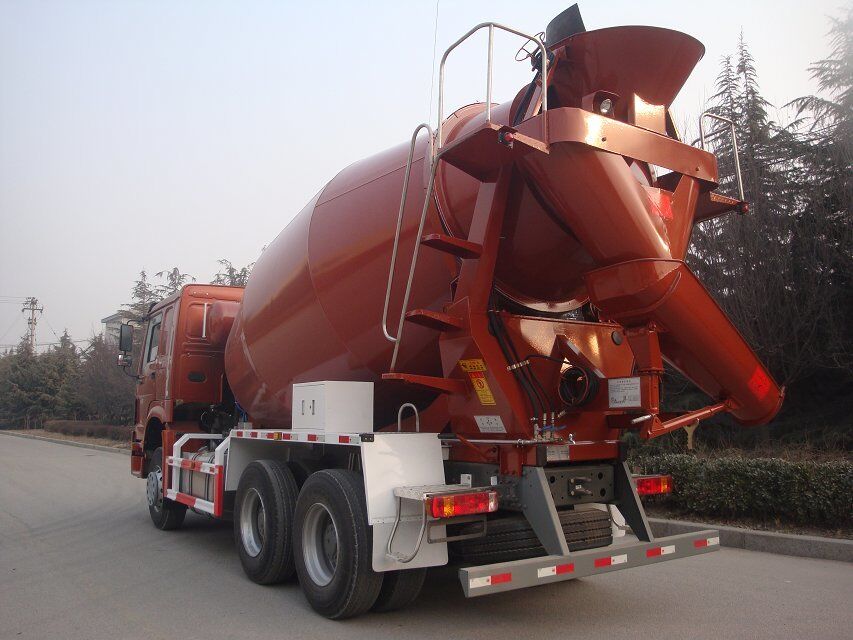

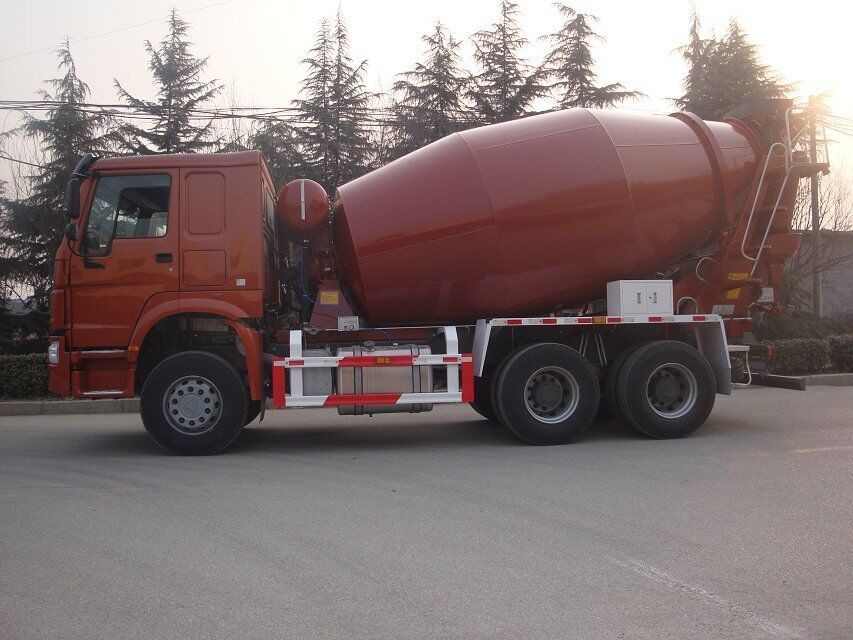

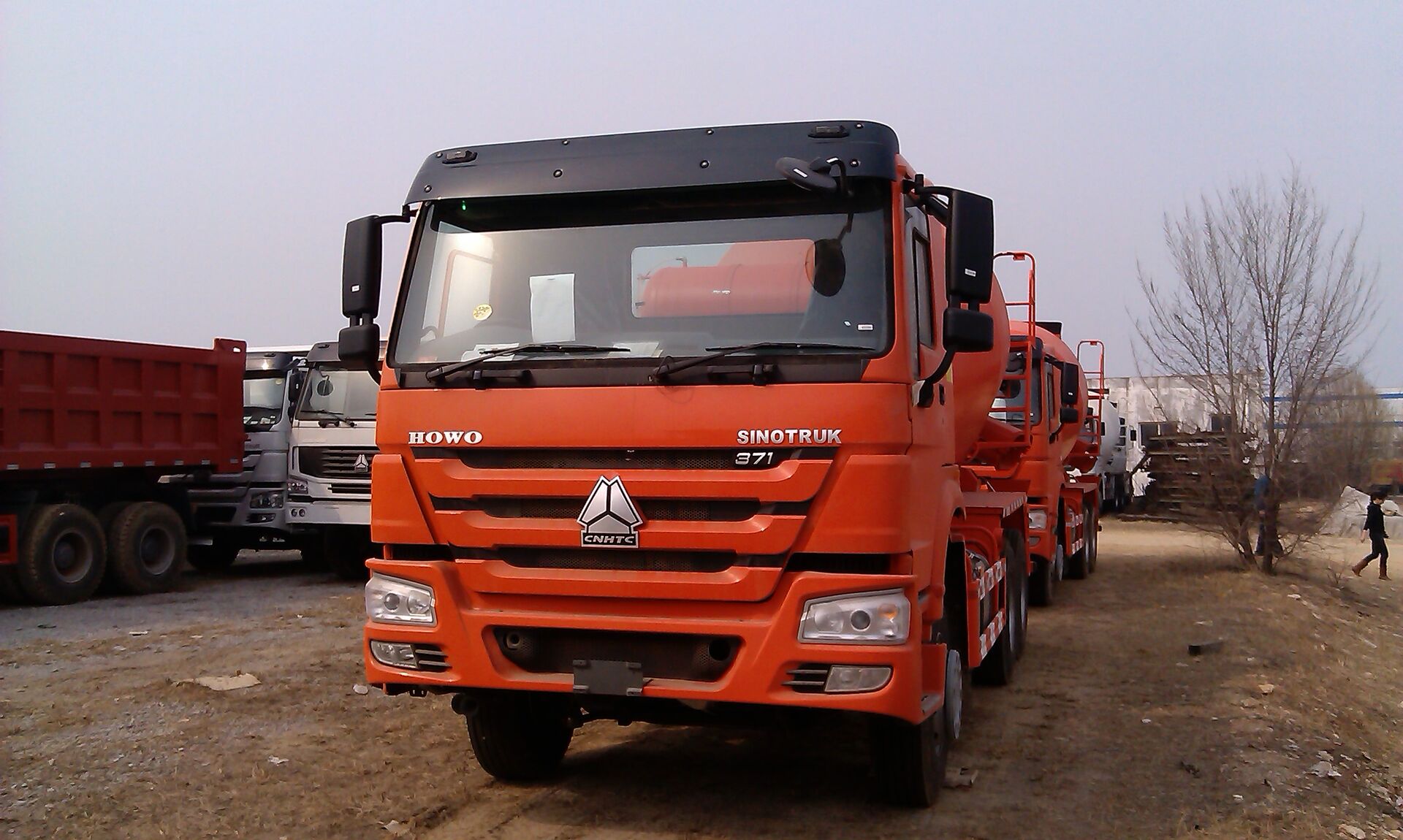

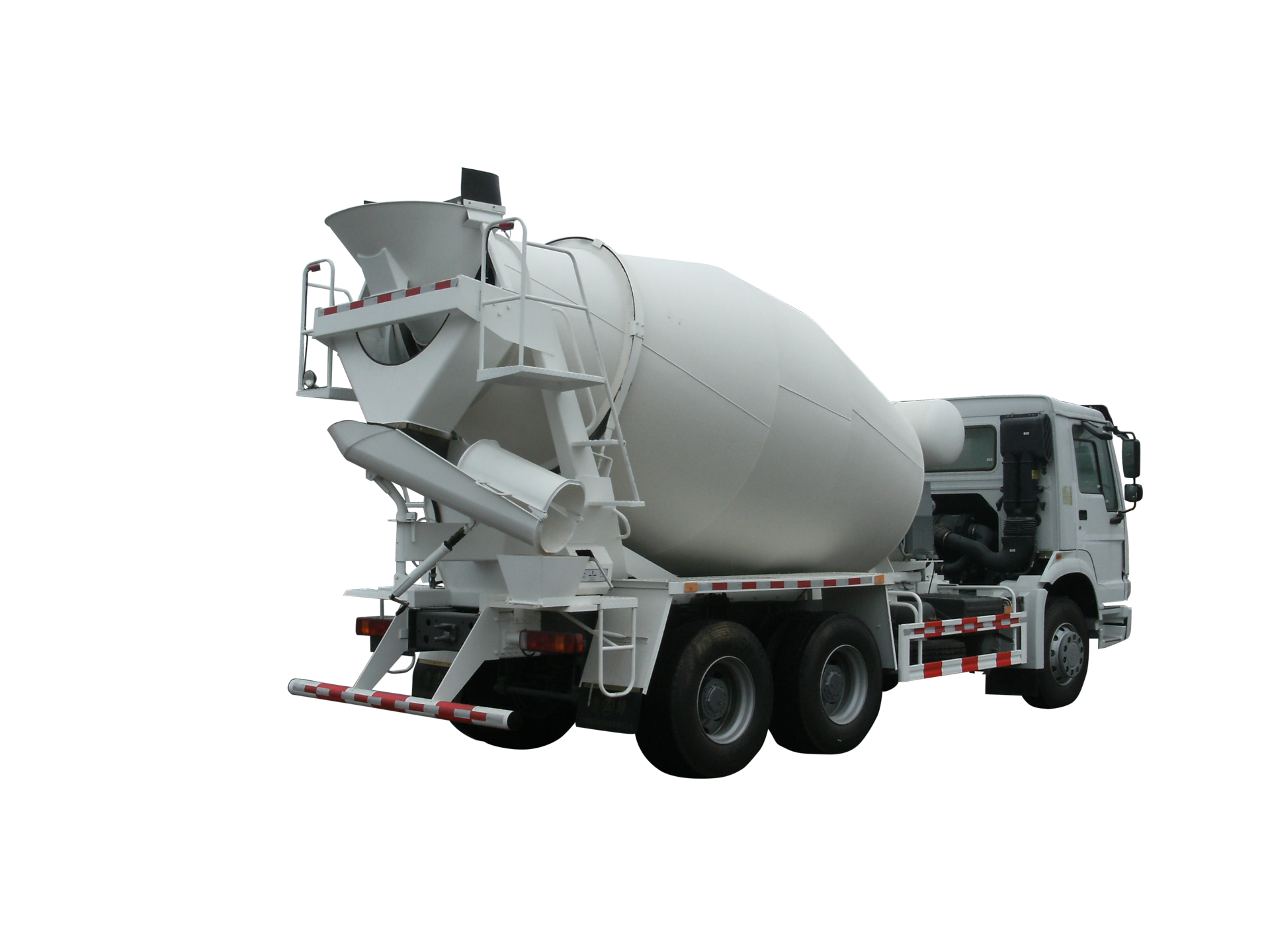

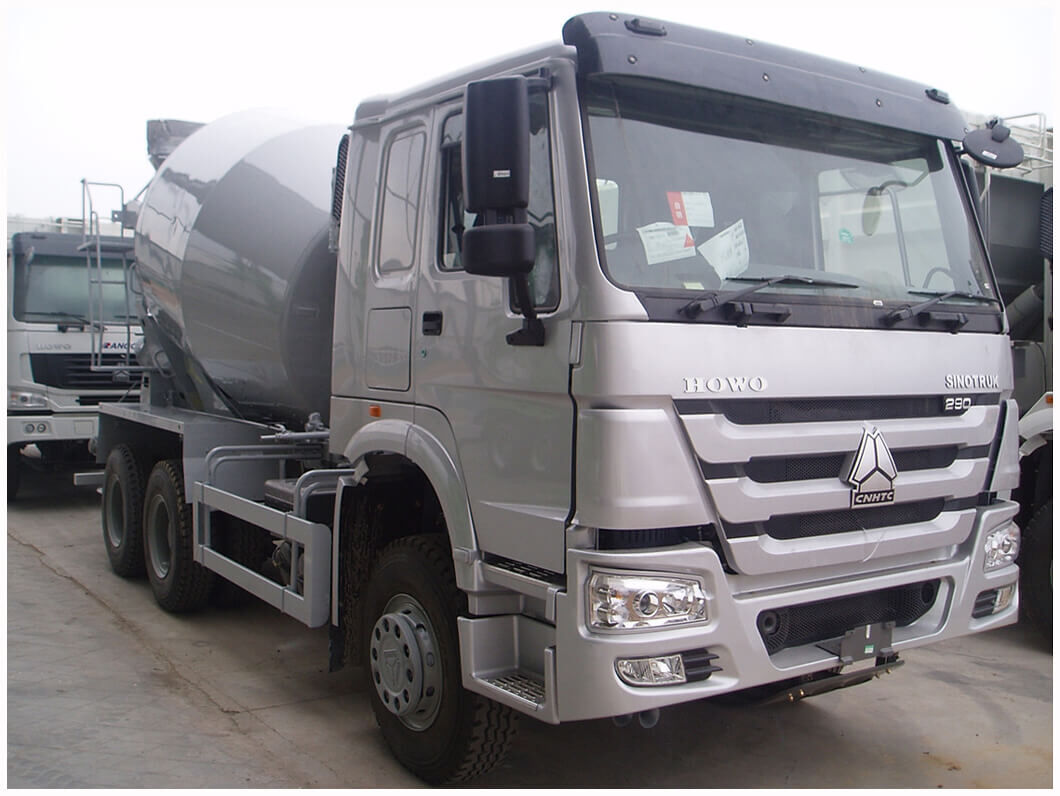

| HOWO 6x4 Concrete Pump Truck |

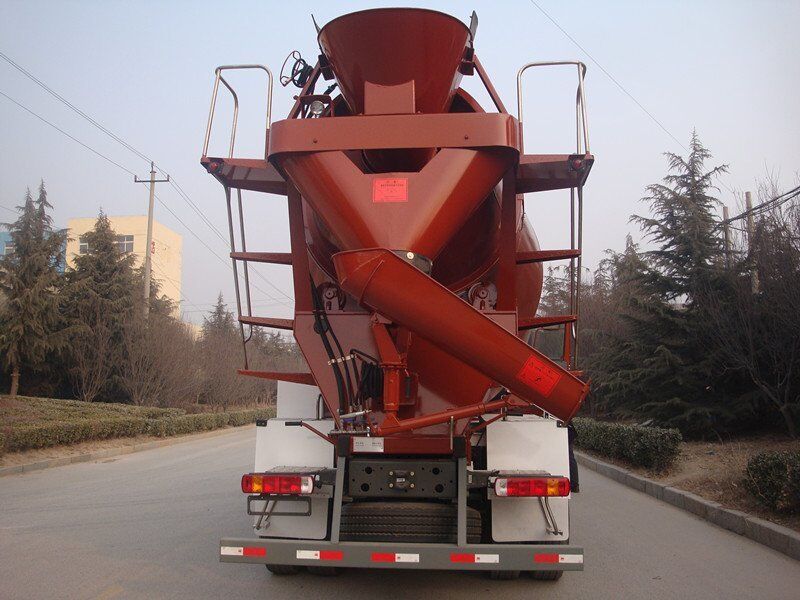

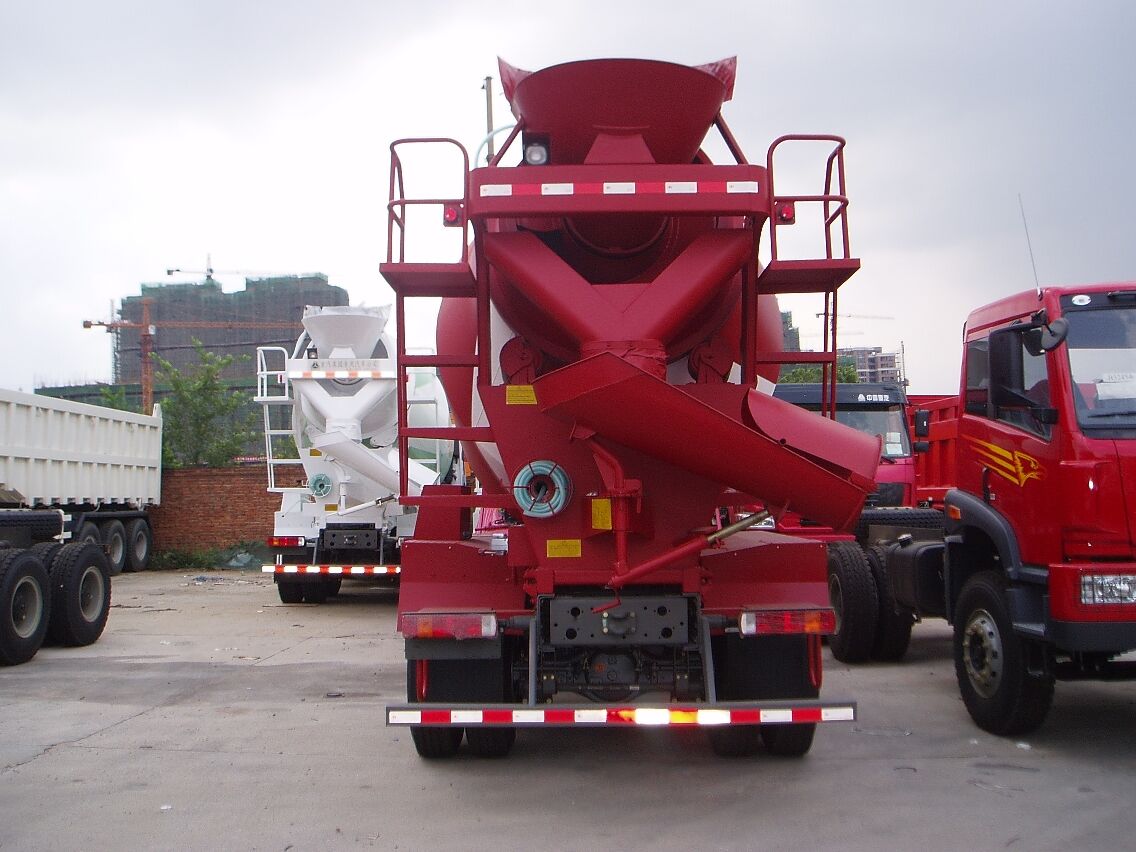

| Concrete Tank Detail | Tank Capacity: 10m3 |
| Tank Thickness | Tank Body: 6mm |
| Front/end plate: 6mm |
| Vane Thickness: 5mm |
| Reduction: Eaton Brand |
| Hydraulic pump: Eaton Brand |
| Hydraulic motor |
| Radiator: YS18 (made in China) |
| Key Performance | Chassis Model: ZZ1257N3841W/NOWA-5 |
| 336 HP Engine |
| Tank Capacity:10m3 |
| Performance | Gross weight | 25000 Kg |
| Chassis dead weight | 8830 Kg |
| Permissible loading capacity | 16040 Kg |
| Wheel base | 3825+1350mm |
| Overall dimension | 8560+2496+3850mm |
| Front overhang/Rear overhang | 1500/2365/1400 |
| Front wheel track | 2022 |
| Rear wheel track | 1850 |
| Approach/Departure angle | 16/33° |
| Max. driving speed | 75Km |
| Maximum grade ability (%) | 50° |
| Fuel consumption(L/100km) | 28 |
| Engine | Make: SINOTRUK |
| Engine model: : WD615.69, Euro II emission standard |
| Maximum output: 336hp(247Kw) at 2200 rpm according to DIN |
| Maximum torque: 1350Nm at 1300~1600 rpm |
| 4 stroke direct injection diesel engine,6 cylinder in-line with water cooling, turbo-charging & inter cooling |
| Bore: 126mm; Stroke: 130mm; |
| Displacement: 9.726L; Compression ratio: 17:1 |
| Min. fuel consumption: 193g/kWh; Engine oil filling quantity: 23L |
| Cooling system filling quantity (long-term filling): 40L |
| Thermostat opening temperature: 71°C |
| Twin cylinder air compressor Rigid fan |
| Transmission | 19710 |
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance. |
| Driving axle | AC16 drum brakes, Casted axle housing, central single reduction with planetary wheel reduction (hub reduction)and differential locks between wheels and axles. |
| Load capacity: 16ton. Ratio: 5.45 |
| Front axle | HF9 drum brakes, load capacity: 9ton |
| Steering box | ZF8098 hydraulic steering with power assistance |
| Cab | HW76 with one berth, right hand drive and safety belt |
| Air conditioner | Yes |
| Tire | 12.00R20 Option: 315/80R22.5 |
| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm and reinforced sub frame, all cold riveted cross members. |
| Front suspension: 90mm*14mm*10pcs semi-elliptic leaf springs with hydraulic telescopic |
| double-action shock absorbers and stabilizer |
| Rear suspension: 25mm*12pcs semi-elliptic leaf springs with bogie spring and stabilizer |
| Fuel tank: with 300 L fuel tank with locking fuel cap |
| With one spare wheel |
| Remarks | Alert sound when back up | Yes, optional |
| Alert light | Yes, optional |
