| Model | ZZ5504N3840AJ | |
| Engine | Make: SINOTRUKEngine model: WD615.47, Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 371hp(273Kw)at 2200 rpm according to DINMaximum torque: 1500Nm at 1100~1600 rpmBore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio:17:1Specific fuel consumption: less than 193g/kWh; Engine oil filling quantity: 23LCooling system filling quantity (long-term filling): 40LTwin cylinder air compressor Rigid fan | |
| Clutch | Single- plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW19712 | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF10 | |
| Rear Axles | AC16, 16ton. double reduction with planetary wheel reduction (hub reduction),and differential locks between wheels and axlesRatio: 6.73 | |
| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm, all cold riveted cross members and reinforced subframeFront suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizerRear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizerWith one spare wheelFuel tank: with 400 L fuel tank with locking fuel cap | |
| Steering | ZF8118 , hydraulic steering with power assistance. | |
| Brakes | Service brake: dual circuit compressed air brakeParking Brake(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust brake Option: ABS | |
| Wheel & Types | Rims: 8.25-25 10 hole-steelTypes 13.00-25 tubeOption: 13.00R25 | |

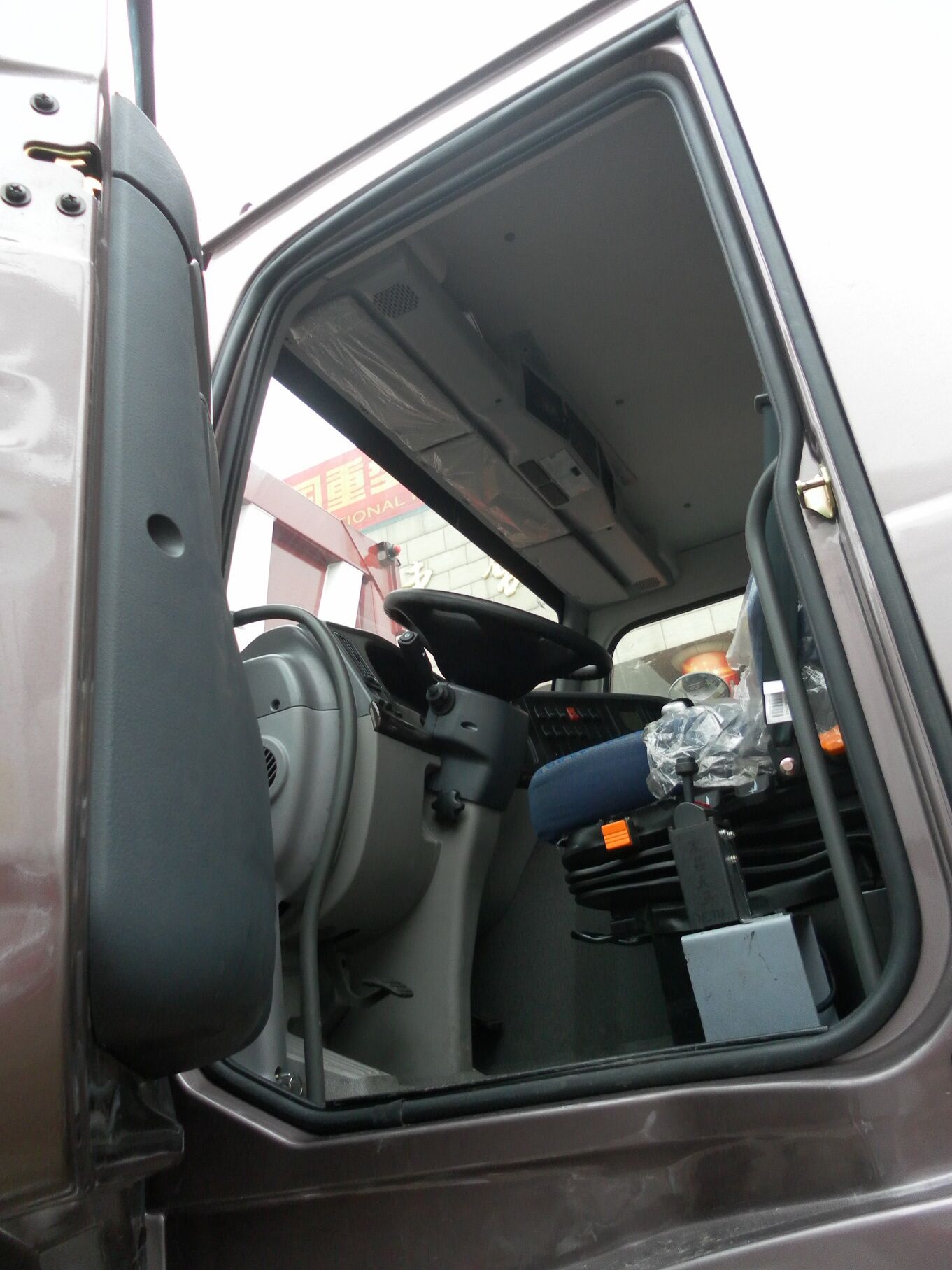

| Driver’s cab | Standard cab, all steel forward control, hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt, adjustable roof flap. | |
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KWAlternator: 3-phrase, 28V, 1500W; Batteries: 2×12, 180AhCigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | |
| Dimensions in mm | Wheel baseFront wheel trackRear wheel trackFront overhangRear overhangApproach angle(o)Departure angle(o)Overall Dimension Cargo body size | 3800+140024342200150015602532.58460×3000×3425(mm)5800×2800×1800 (mm) |
| Weight in kg | Permissible loading capacity on chassisDead weightGross vehicle weightFront axle loading capacityRear axle loading capacity | 3140018600500001000020000×2 |
| Performance | Maximum driving speed(km/h)Maximum grade ability (%)Minimum ground clearance(mm)Minimum turning circle(m)Fuel consumption(L/100km) | 69343402131 |
