| Model | ZZ3259N364PB3/NOJA | |

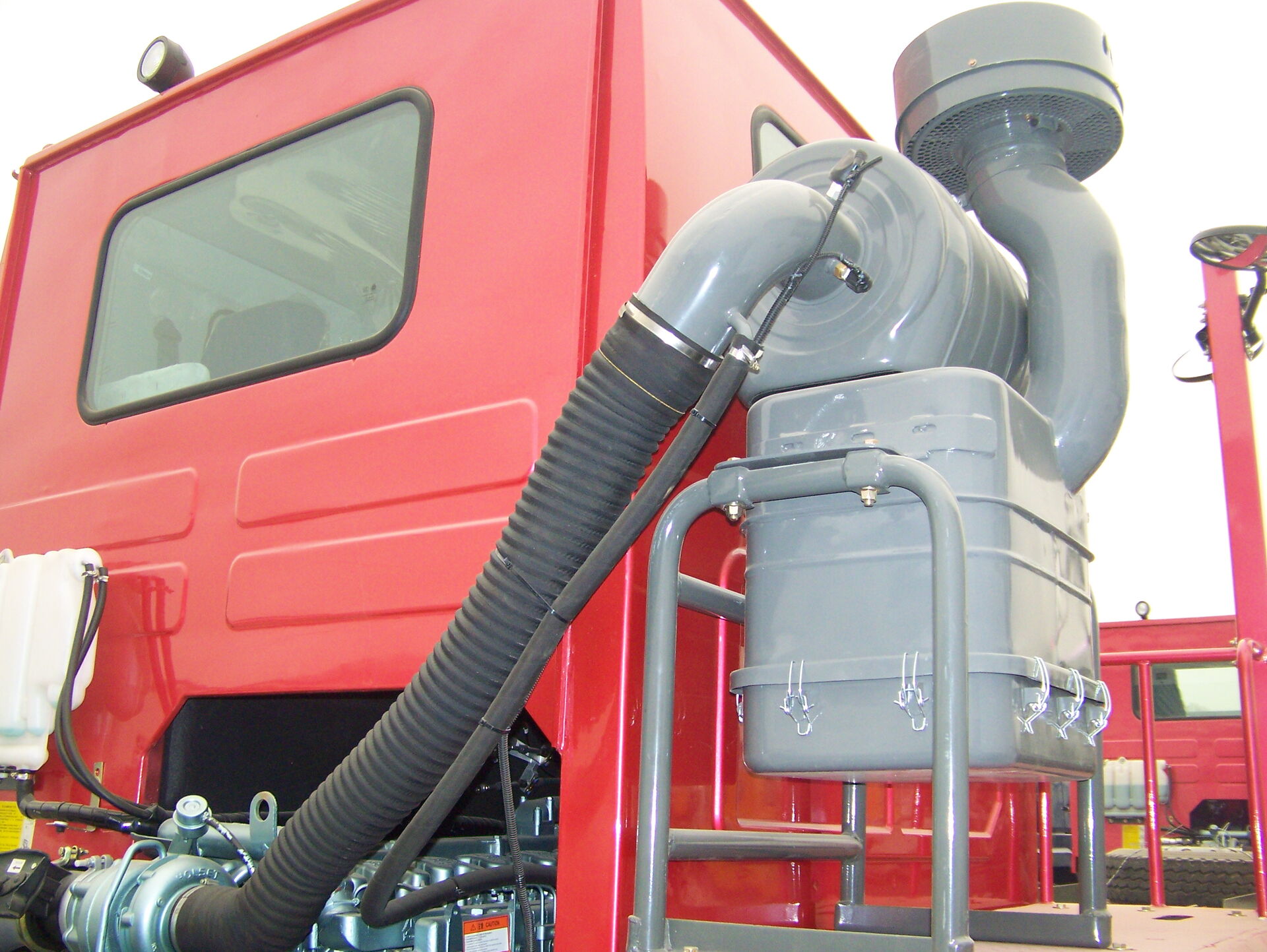

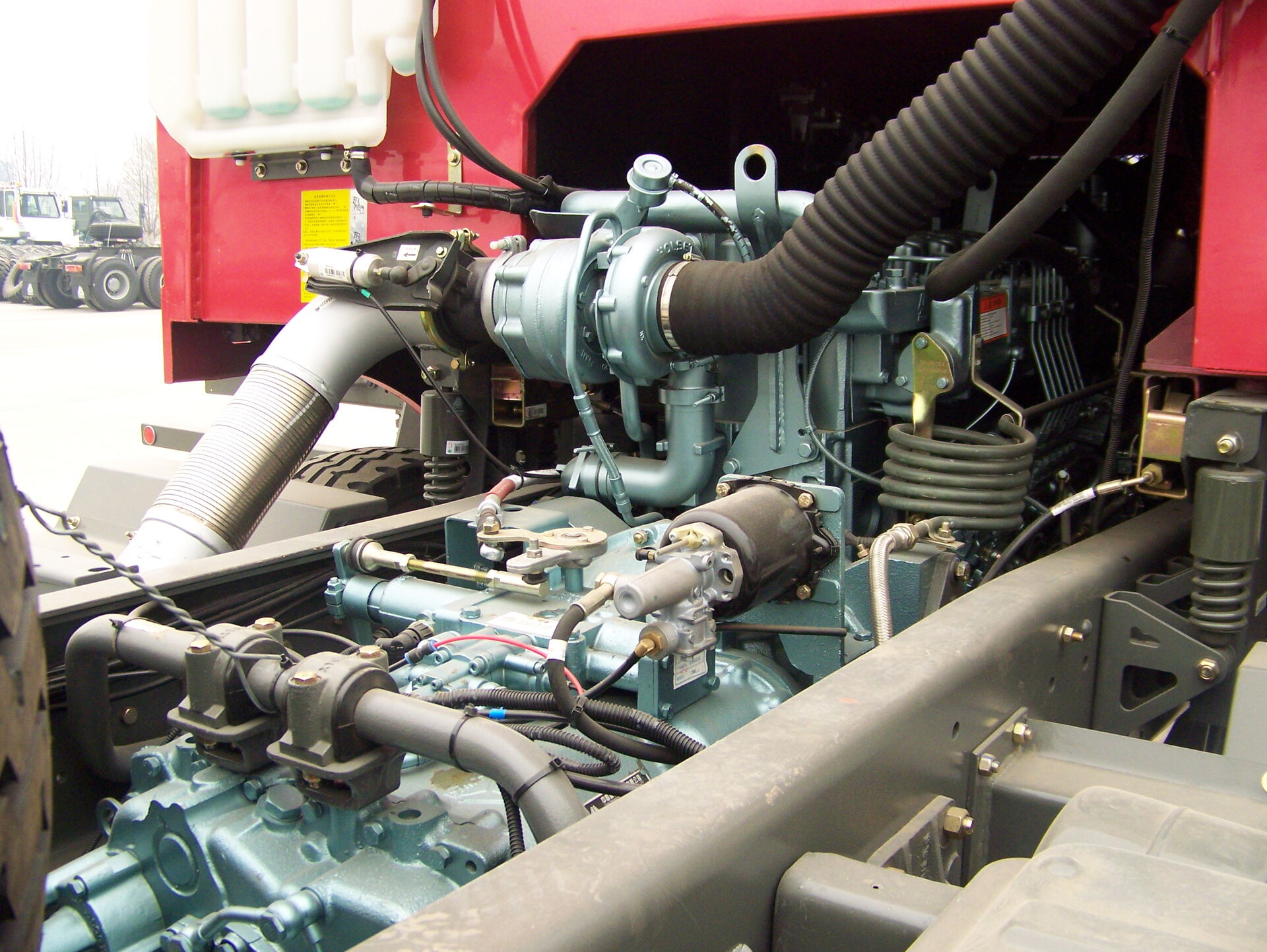

| Engine | Make: SINOTRUKEngine model: WD615.47, Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 371hp(273Kw) at 2200 rpm according to DIN.(option: 336hp,290hp)Maximum torque: 1500Nm at 1100~1600 rpmBore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio: 17:1Specific fuel consumption: 208g/kWh; Engine oil filling quantity: 19LCooling system filling quantity (long-term filling): 40LThermostat opening temperature: 71oC Intake system: Cyclone primary filter , Oil filter and Air filterRigid fan | |
| Clutch | 430mm diaphragm spring clutch, hydraulic control with air assistance.WD615.47 engine standard is 430A model. | |
| Transmission | SINOTRUK HW series. Model HW19710. 10 gears transmission, transmission with main and auxiliary transmission structure. Main transmission with double counter shaft, auxiliary transmission with planetary reduction, with PTO. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1.00 / 13.91, 3.18 (R) | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling | |
| Front Axle | HR9, 9 ton, Steering with double T-cross section. Disc Brake. Option: drum brake. | |
| Rear Axles | AC16, 16ton. cast steel double reduction tandem axles with differential locks between wheels and axles, ratio: 5.45(4.77，6.5 as options )Option: HC16, ration4.42, 4.8,5.73 | |
| Chassis | Frame: reinforced parallel ladder frameFront suspension: leaf spring, cylindrical shock absorber, front stabilizing bar.Rear suspension: integrated balanced suspension, and rear V-thruSpare wheel carrier: with one spare wheelFuel tank: with 300 L fuel tank with locking fuel cap. | |
| Steering | ZF8118 (Left Hand Drive) , hydraulic steering with power assistance.Option: Right Hand Drive | |
| Brakes | Service brake: dual circuit compressed air brakeParking brake :( emergency brake): spring storage energy without air.Auxiliary brake: Engine exhaust braking. Standard engine EVB. With ABS and optional auto clearance adjusting arm. | |
| Wheel & Types | Rims: 8.5/1.5-20, 10 hole-steelTypes 12R20 Option: 12.00-20 tube etc. | |

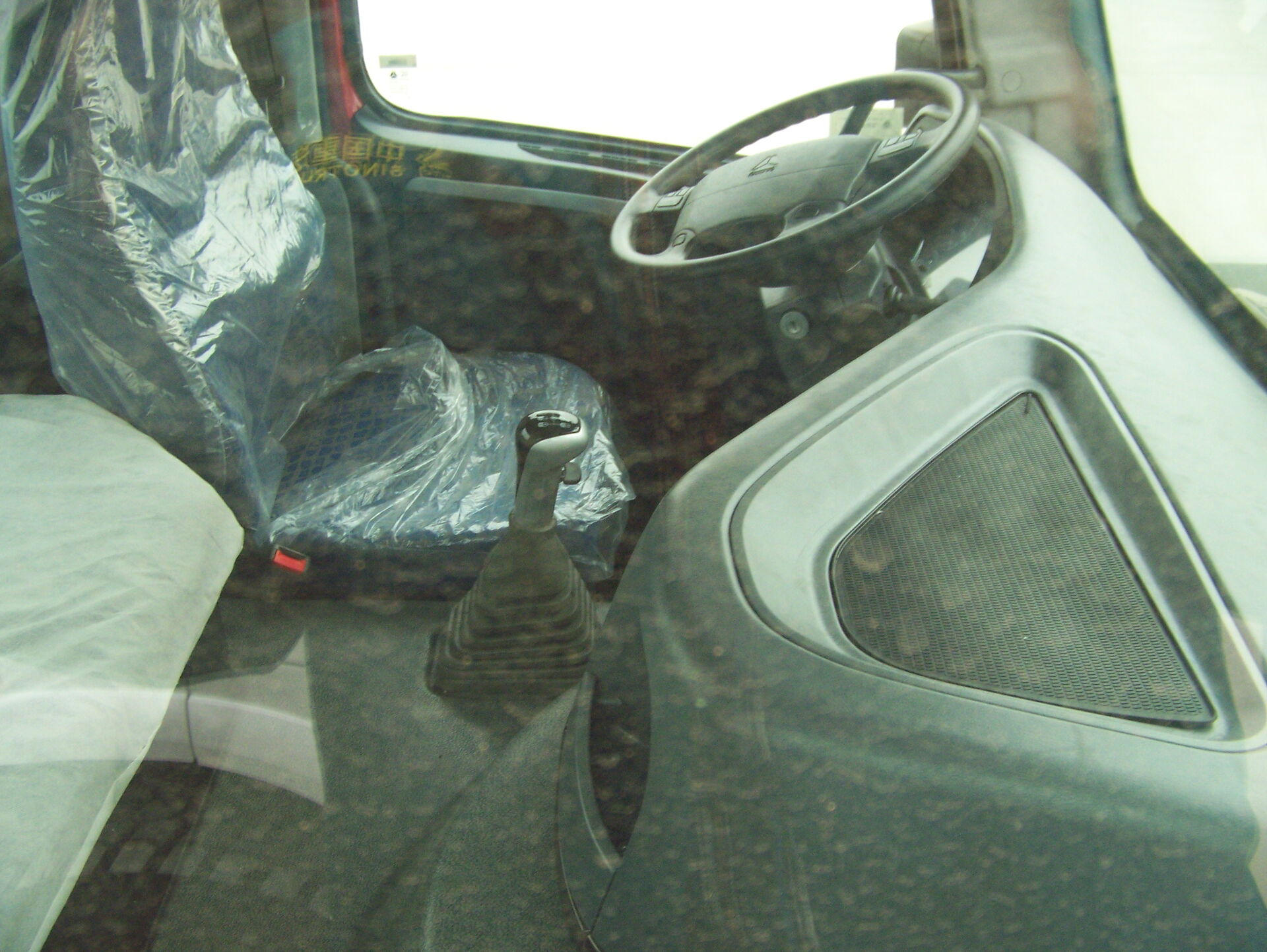

| Driver’s cab | Standard cab, with one berth. frame cover large surface and single edge reinforced special cab with hydraulic air booster | |
| Electrics | Operating voltage:24V, single line, negative grounded; Alternator: 24V, 1500W; VDO combined instrument , headlight of 4 lamps , HOWO combined taillight Batteries: 2×12, 165AhCigar-lighter, horn, headlamp, fog light, reverse lamp | |
| Dimensions in mm | Wheel baseFront wheel trackRear wheel trackFront overhangRear overhangApproach angle(o)Departure angle(o)Overall Dimension Cargo body size | 3625+13502022 18301500167029269245×2496×3170(mm)5400×2300×1230 (mm) (has different carriage size for option) |
| Weight in kg | Permissible loading capacity on chassisDead weightGross vehicle weightFront axle loading capacityRear axle loading capacity | 126701228025000900016000×2 |
| Performance | Maximum driving speed(km/h)Maximum gradeablility (%)Minimum ground clearance(mm)Minimum turning circle(m) | 784831416.3 |
